Rear Side Door Water Deflector Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

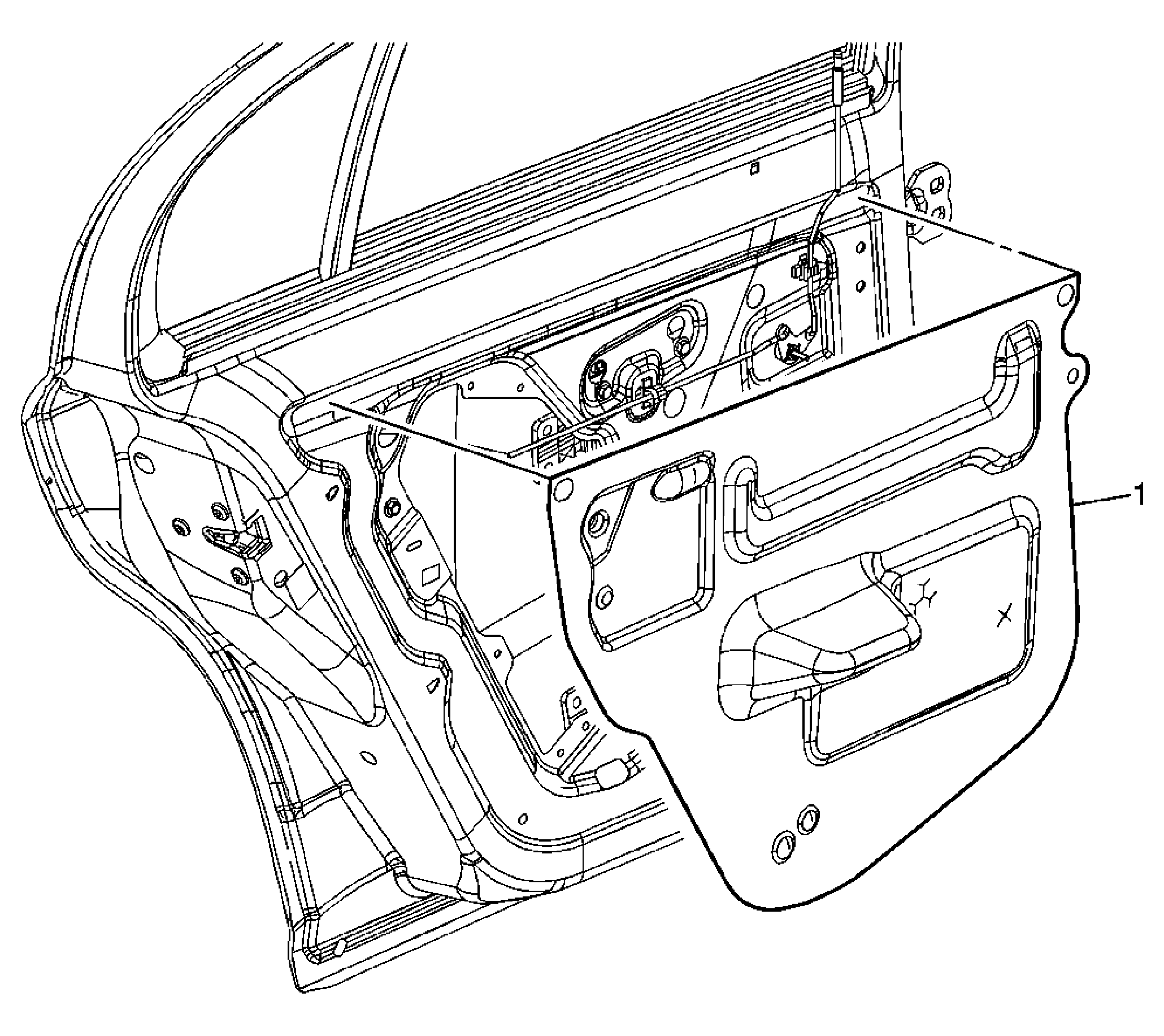

Fig 1: Water Deflector Replacement - Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement .
1	Rear Side Door Water Deflector Assembly Tip: Carefully pull the water deflector away from the door while feeding any wiring or connectors through the water deflector.
