Rear Side Door Window Regulator Replacement (Manual Sedan)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

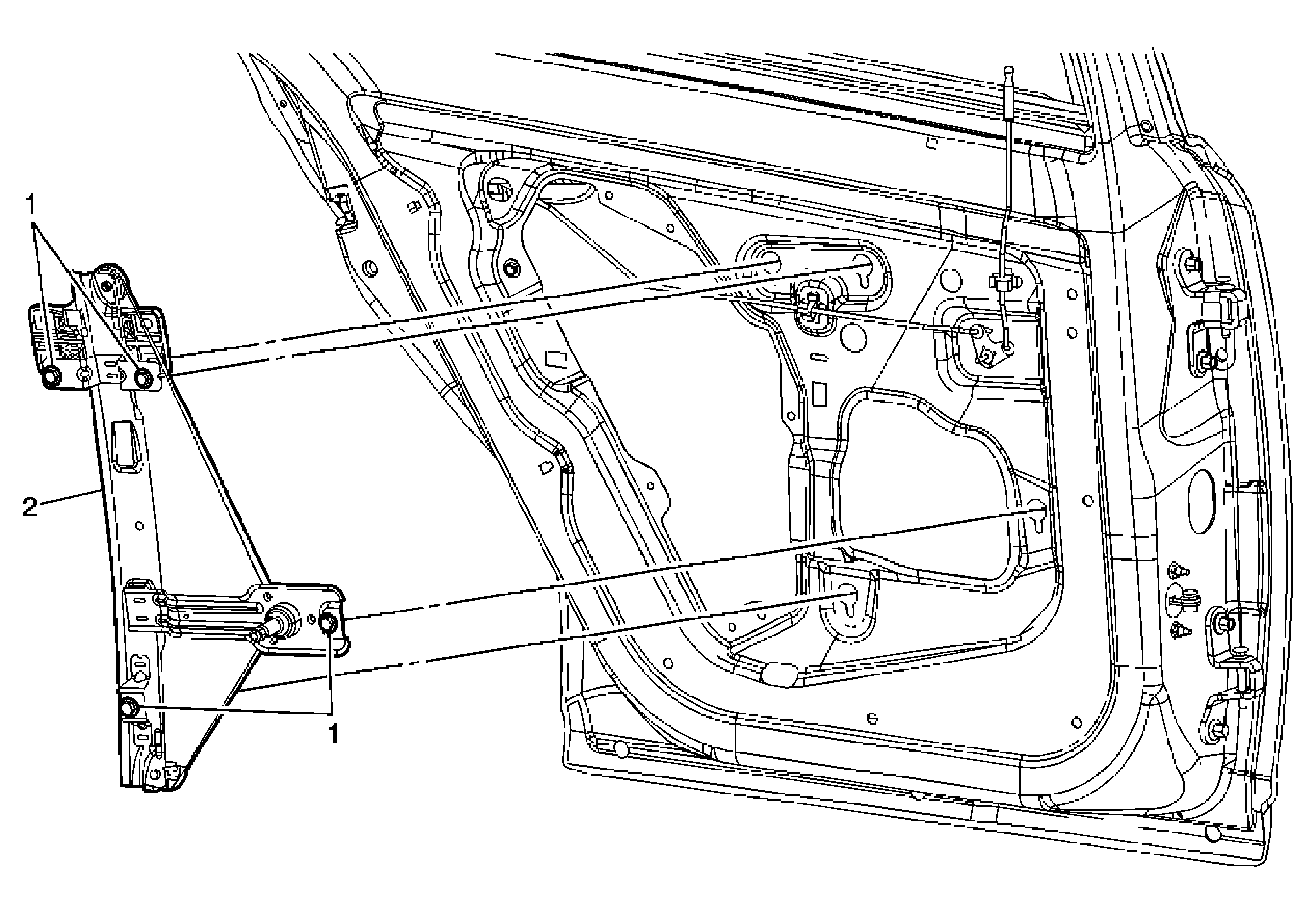

Fig 1: Window Regulator Replacement - Rear Door (Manual Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement . Move the window to the full up position and secure in place with tape.
1	Side Door Window Regulator Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tip: Loosen the bolts enough so that the regulator assembly will lift out of the t-slots in the door inner panel. Tighten: 10 N.m (89 lb in)
2	Rear Side Door Window Regulator Assembly

Callout

Component Name

Preliminary Procedures

Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
Move the window to the full up position and secure in place with tape.

Side Door Window Regulator Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tip: Loosen the bolts enough so that the regulator assembly will lift out of the t-slots in the door inner panel.

Tighten: 10 N.m (89 lb in)

Rear Side Door Window Regulator Assembly
