Rear Side Door Trim Panel Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

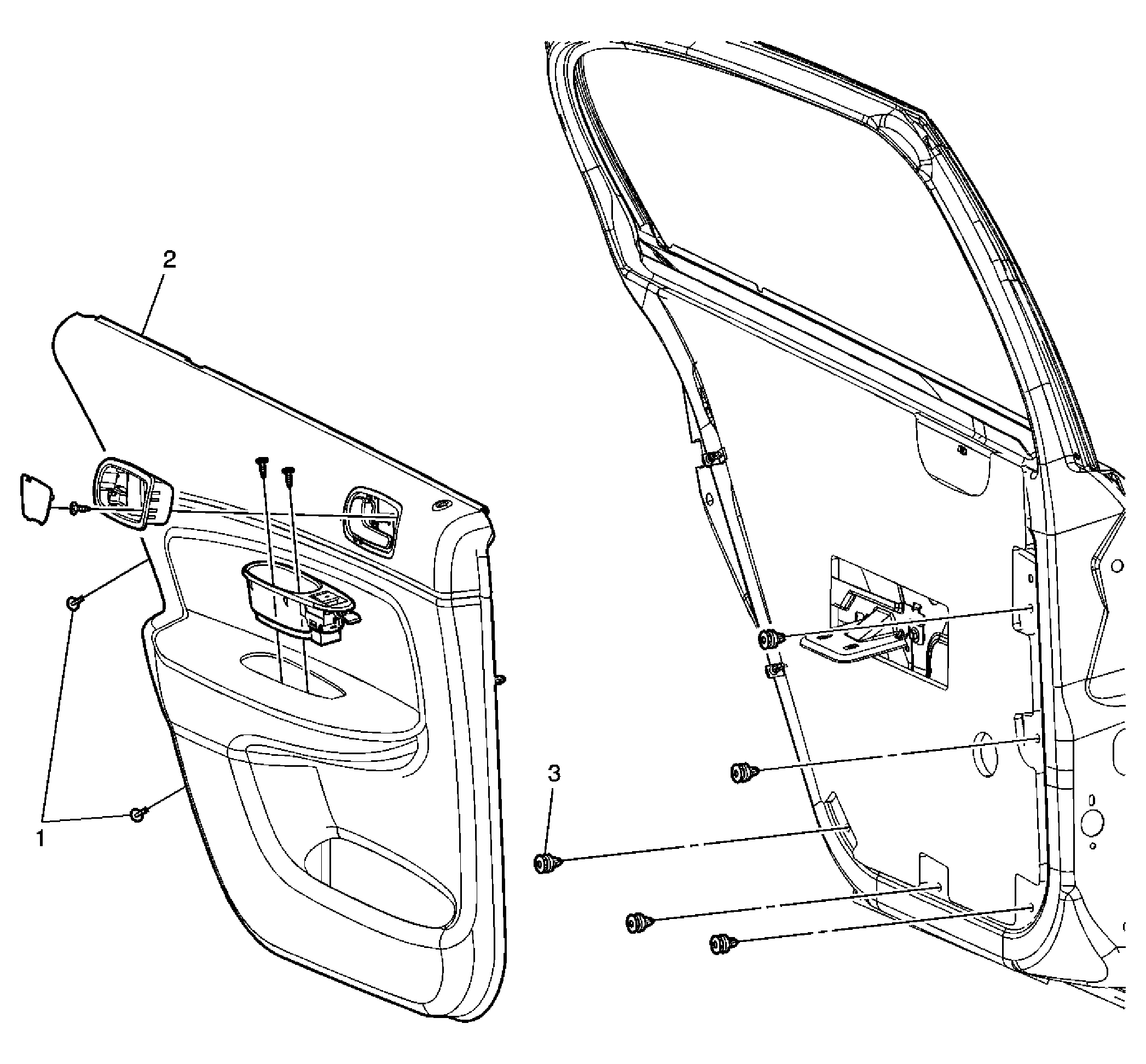

Fig 1: Trim Panel Replacement - Side Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the armrest pull cup. Refer to Armrest Pull Cup Replacement . Remove the manual window regulator handle if equipped. Refer to Door Window Regulator Handle Replacement . Disconnect the inside door handle cable. Refer to Door Inside Handle Replacement .
1	Side Door Trim Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2.2 N.m (19 lb in)
2	Side Door Trim Panel Assembly
3	Side Door Trim Retainer
