Rear Window Panel Trim Replacement (Coupe)

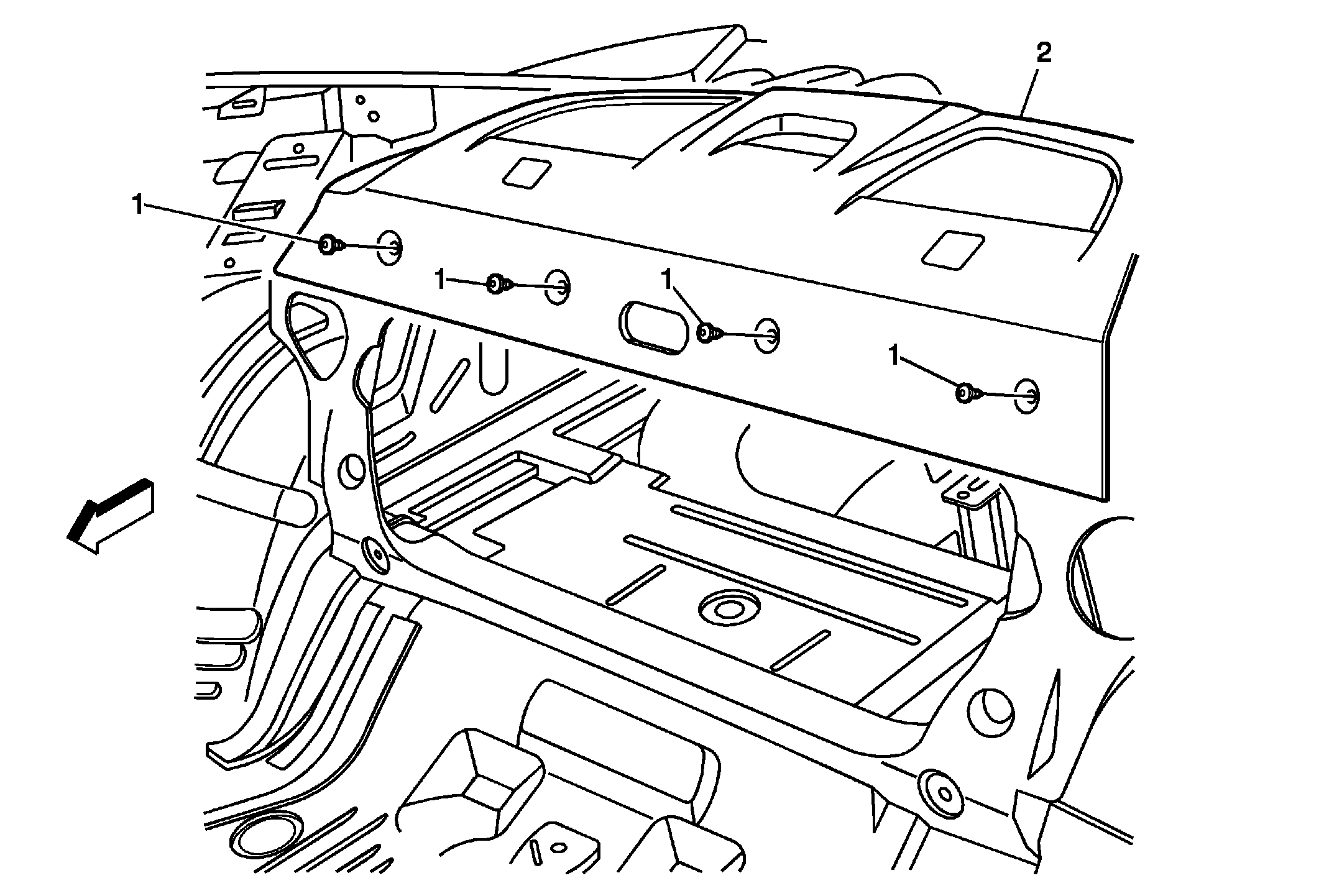

Fig 1: Rear Window Panel Trim And Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable SIR system. Refer to SIR Disabling and Enabling . Remove quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement (Coupe) , Quarter Upper Trim Panel Replacement (Convertible) . Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement . Pull the release strap located in the center of the rear seat back cushion, folding the rear seat forward.
1	Rear Window Panel Trim Fastener (Qty: 4)
2	Rear Window Panel Trim Assembly Procedure When replacing the rear window panel trim assembly, transfer all necessary components.

Callout

Component Name

Preliminary Procedures

Disable SIR system. Refer to SIR Disabling and Enabling .
Remove quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement (Coupe) , Quarter Upper Trim Panel Replacement (Convertible) .
Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
Pull the release strap located in the center of the rear seat back cushion, folding the rear seat forward.

Rear Window Panel Trim Fastener (Qty: 4)

Rear Window Panel Trim Assembly
Procedure
When replacing the rear window panel trim assembly, transfer all necessary components.
