Driver or Passenger Seat Retractor Side Belt Replacement

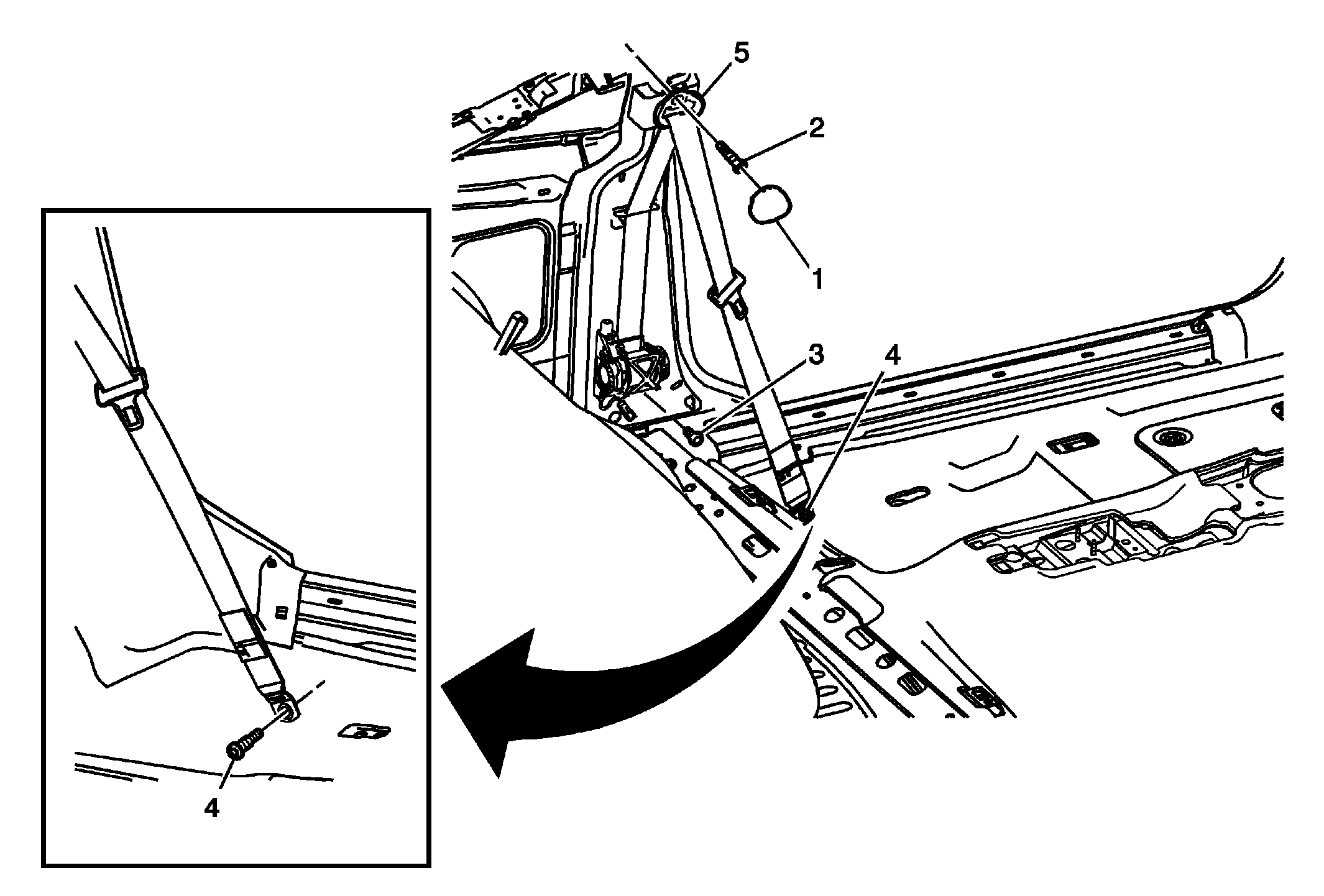

Fig 1: Driver Or Passenger Seat Retractor Side Belt Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the quarter trim panel. Refer to Quarter Trim Panel Replacement (Coupe) , Quarter Trim Panel Replacement (Convertible) .
1	Driver Seat Shoulder Belt Guide Bracket Cover
2	Shoulder Belt Fastener CAUTION: Refer to Fastener Caution . Tighten 47 N.m (35 lb ft)
3	Shoulder Belt Retractor Fastener Tighten 47 N.m (35 lb ft)
4	Shoulder Belt Assembly Fastener Tighten 47 N.m (35 lb ft)
5	Driver or Passenger Shoulder Belt Assembly
