Rear Seat Back Cushion Lower Cross Bar Replacement

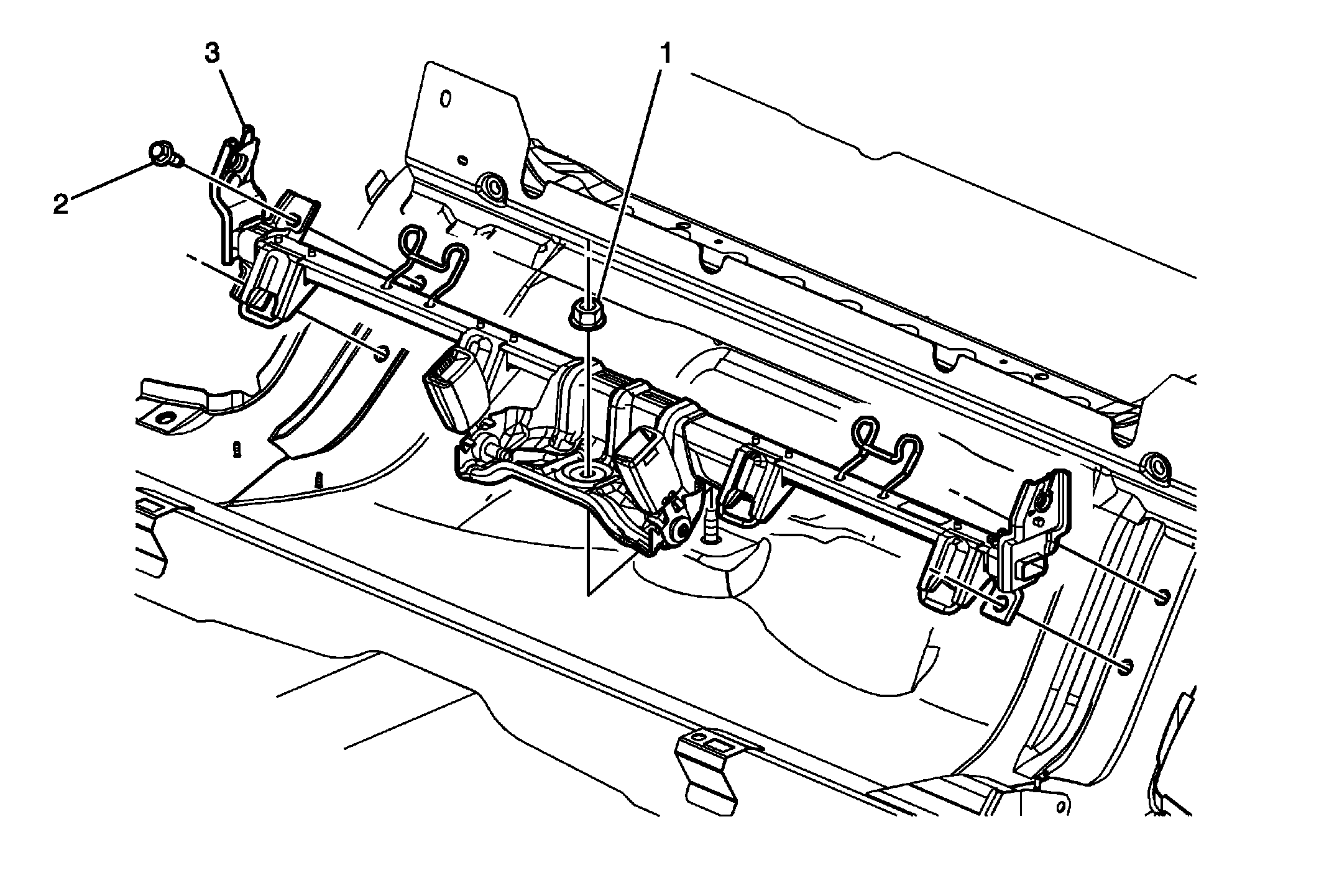

Fig 1: Rear Seat Back Cushion Lower Cross Bar And Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Replacement (Coupe) , Rear Seat Back Cushion Replacement (Convertible)
1	Rear Seat Back Cushion Lower Cross Bar Nut CAUTION: Refer to Fastener Caution . Tighten 74 N.m (55 lb ft)
2	Rear Seat Back Cushion Lower Cross Bar Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 49 N.m (36 lb ft)
3	Rear Seat Back Cushion Lower Cross Bar Procedure After removing all retainers, pull upward on the lower cross bar to remove it off the center stud.
