Rear Seat Inner Recliner Cable Replacement (Short Cable 40%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

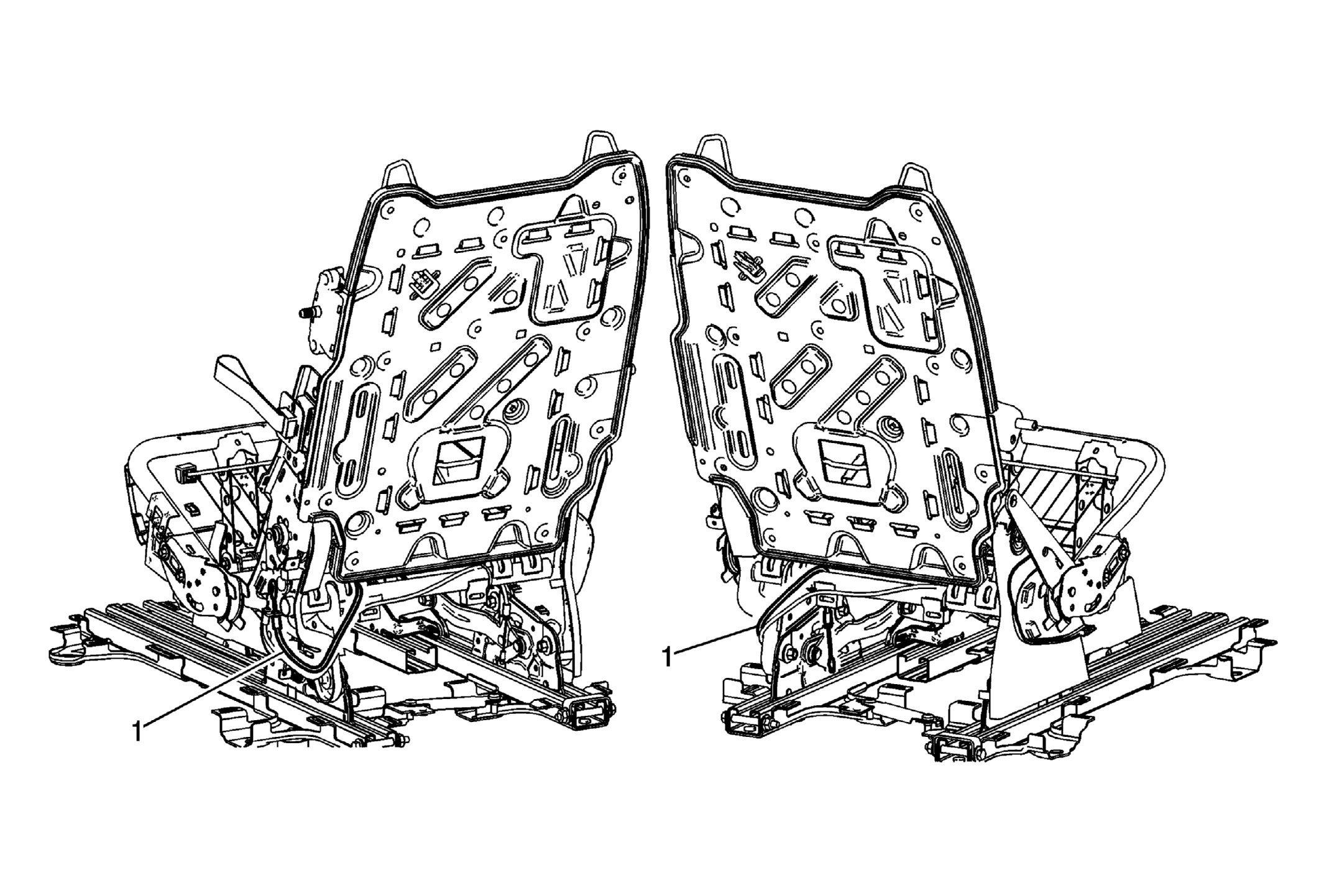

Fig 1: Rear Seat Inner Recliner Cable (Short Cable With 40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Removal and Installation (40%) . Remove the rear seat outboard outer recliner cover. Refer to Rear Seat Recliner Outer Finish Cover Replacement - Inboard (40%) . Remove the rear back cushion filler panel. Refer to Rear Seat Back Filler Panel Replacement (40%) .
1	Rear Seat Back Latch Release Cable Procedure Note the routing of the cable for installation purposes. Disconnect the cable from the recliner. Note the location of the retainer clip when removing the cable and always make sure the cable is attached to the clip in the same location.

Callout

Component Name

Preliminary Procedures

Remove the rear seat. Refer to Rear Seat Removal and Installation (40%) .
Remove the rear seat outboard outer recliner cover. Refer to Rear Seat Recliner Outer Finish Cover Replacement - Inboard (40%) .
Remove the rear back cushion filler panel. Refer to Rear Seat Back Filler Panel Replacement (40%) .

Rear Seat Back Latch Release Cable

Procedure

Note the routing of the cable for installation purposes.
Disconnect the cable from the recliner.
Note the location of the retainer clip when removing the cable and always make sure the cable is attached to the clip in the same location.
