Rear Seat Removal and Installation (40%)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

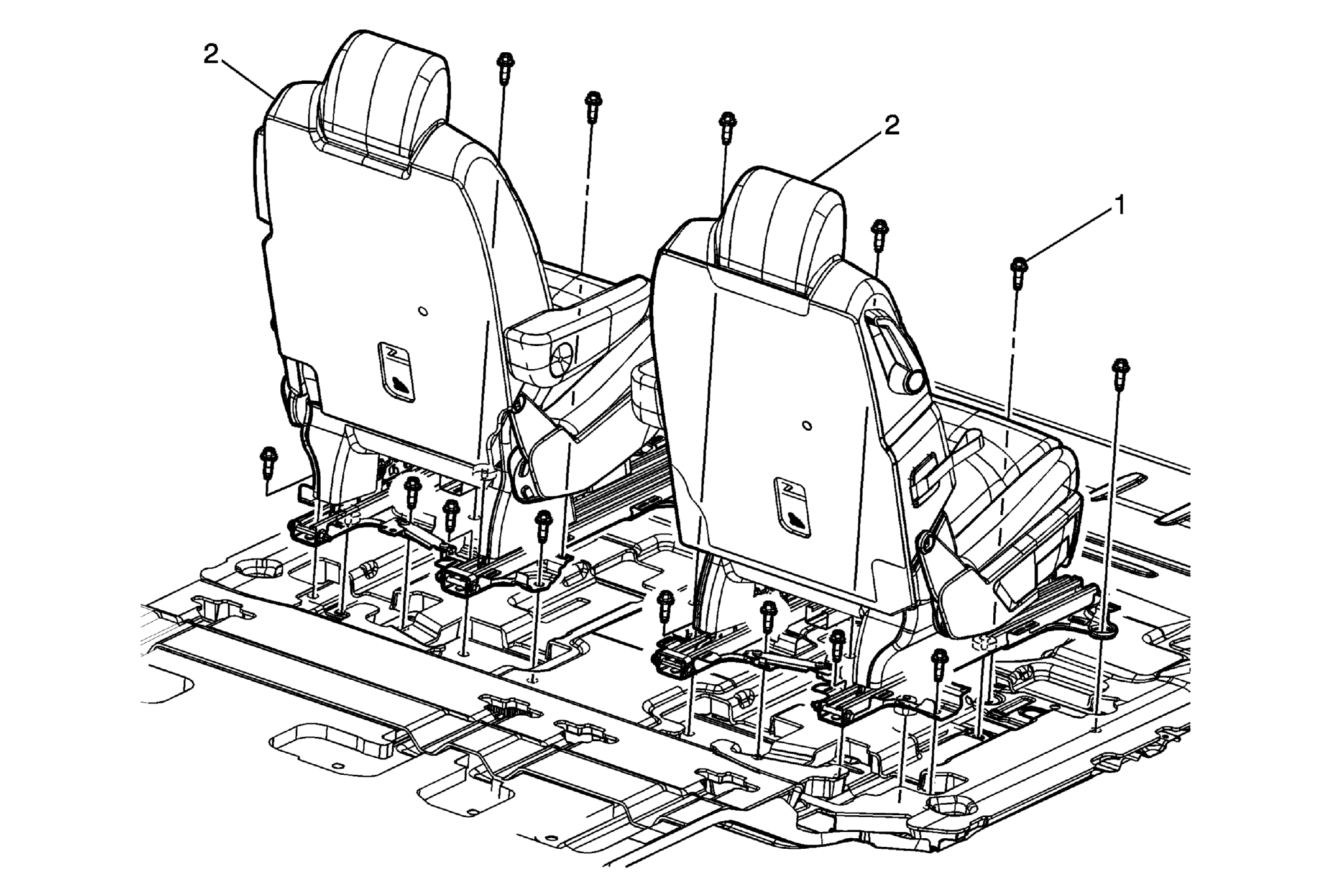

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat track covers. Refer to Rear Seat Track Front Inboard Cover, Front Outboard Cover, Rear Inboard Cover, and Rear Outboard Cover Replacement . |
|
| 1 | Rear Seat No. 1 Assembly Bolt (Qty: 14)
CAUTION:
Refer to Fastener Caution . Tighten 55 N.m (41 lb ft) |
| 2 | Rear Seat Assembly (Qty: 2) |
