Rear Seat Back Filler Panel Replacement (40%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

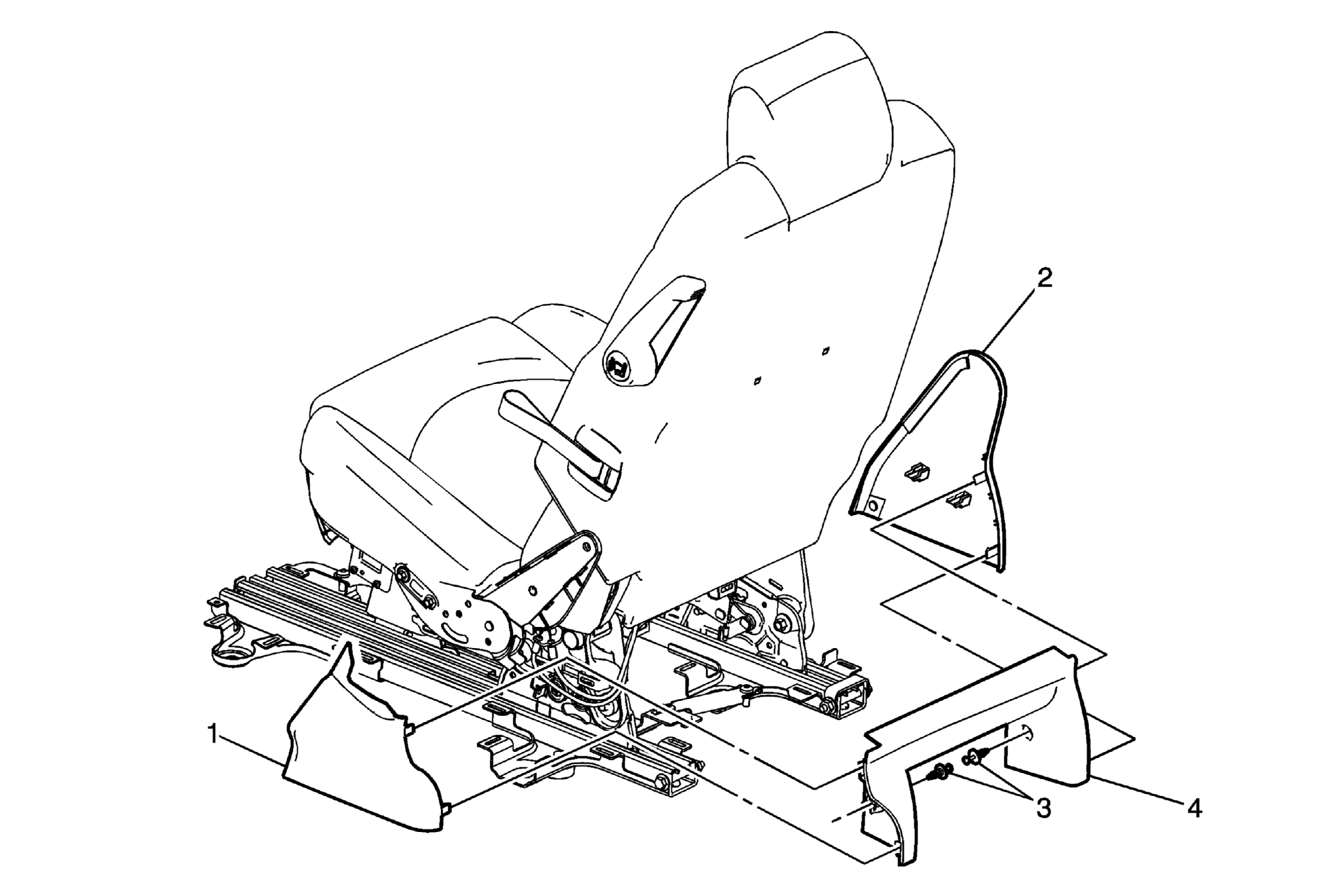

Fig 1: Rear Seat Back Filler Panel (With 40 Percent Seat)
GM1850540Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Recliner Outer Finish Cover

Procedure

  1. Release the seat to the full forward position.
  2. Remove the rear seat recliner outer finish cover by pulling outward to disengage the retainers.
2 Rear Seat Recliner Outer Finish Cover
Procedure
Remove the rear seat recliner outer finish cover by pulling outward to disengage the retainers.
3 Rear Seat Back Cushion Filler Panel Push-in Retainer (Qty: 2)
4 Rear Seat Back Cushion Filler Panel
Procedure
Pull rearward to disengage the retainers.
