Rear Seat Recliner Outer Finish Cover Replacement - Inboard (40%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

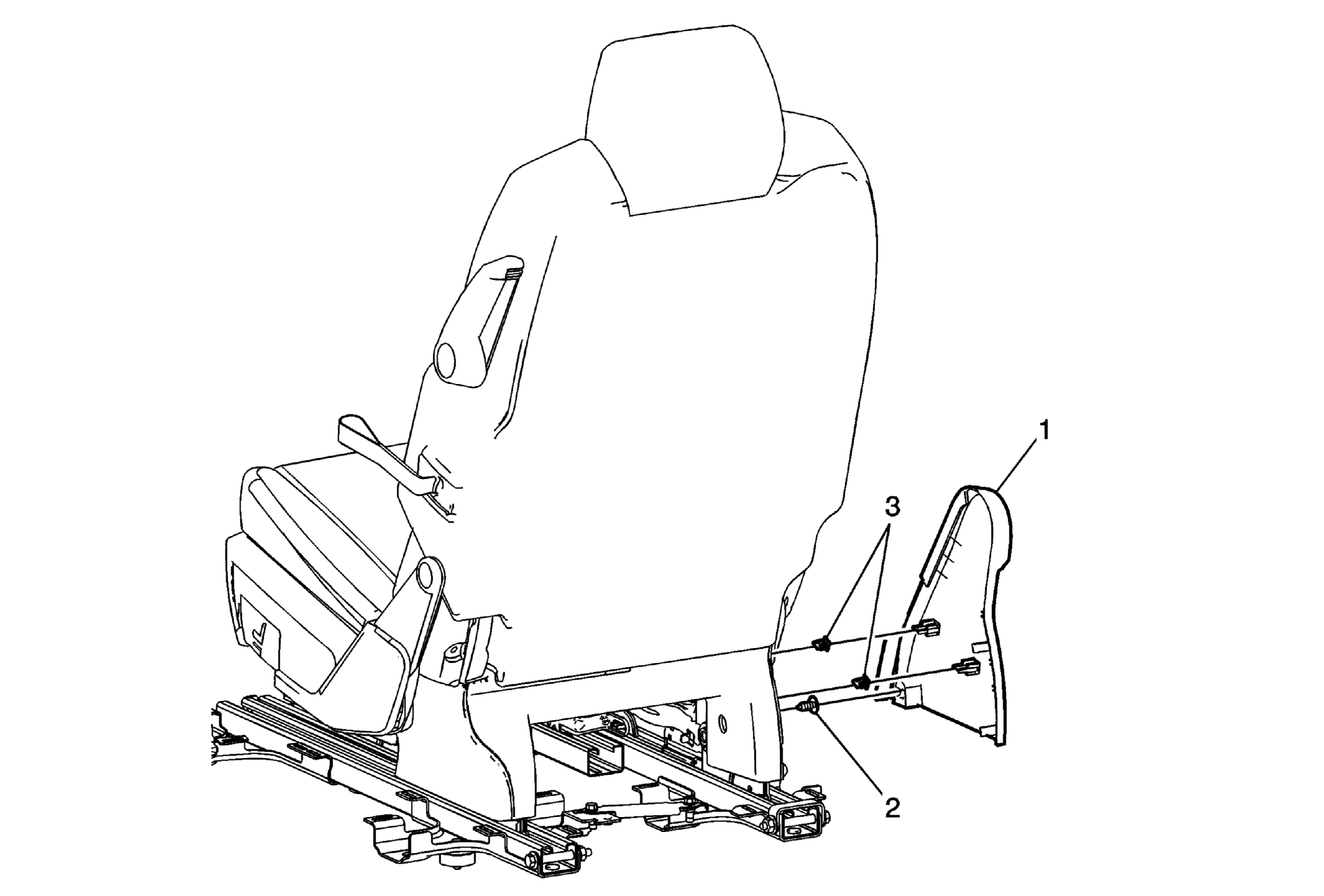

Fig 1: Rear Seat Recliner Outer Finish Cover - Inboard (With 40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Recliner Outer Finish Cover Procedure Move the seat forward to the Smart Slide® E-Z entry position. Remove the rear seat recliner outer finish cover by pulling outward to disengage the retainers. When reinstalling the cover, ensure that the inboard recliner cable is above the push-in retainer.
2	Push-in Retainer
3	Retainer Clip (Qty: 2)

Callout

Component Name

Rear Seat Recliner Outer Finish Cover

Procedure

Move the seat forward to the Smart Slide® E-Z entry position.
Remove the rear seat recliner outer finish cover by pulling outward to disengage the retainers.
When reinstalling the cover, ensure that the inboard recliner cable is above the push-in retainer.

Push-in Retainer

Retainer Clip (Qty: 2)
