Rear Seat Back Cushion Frame Replacement (40%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

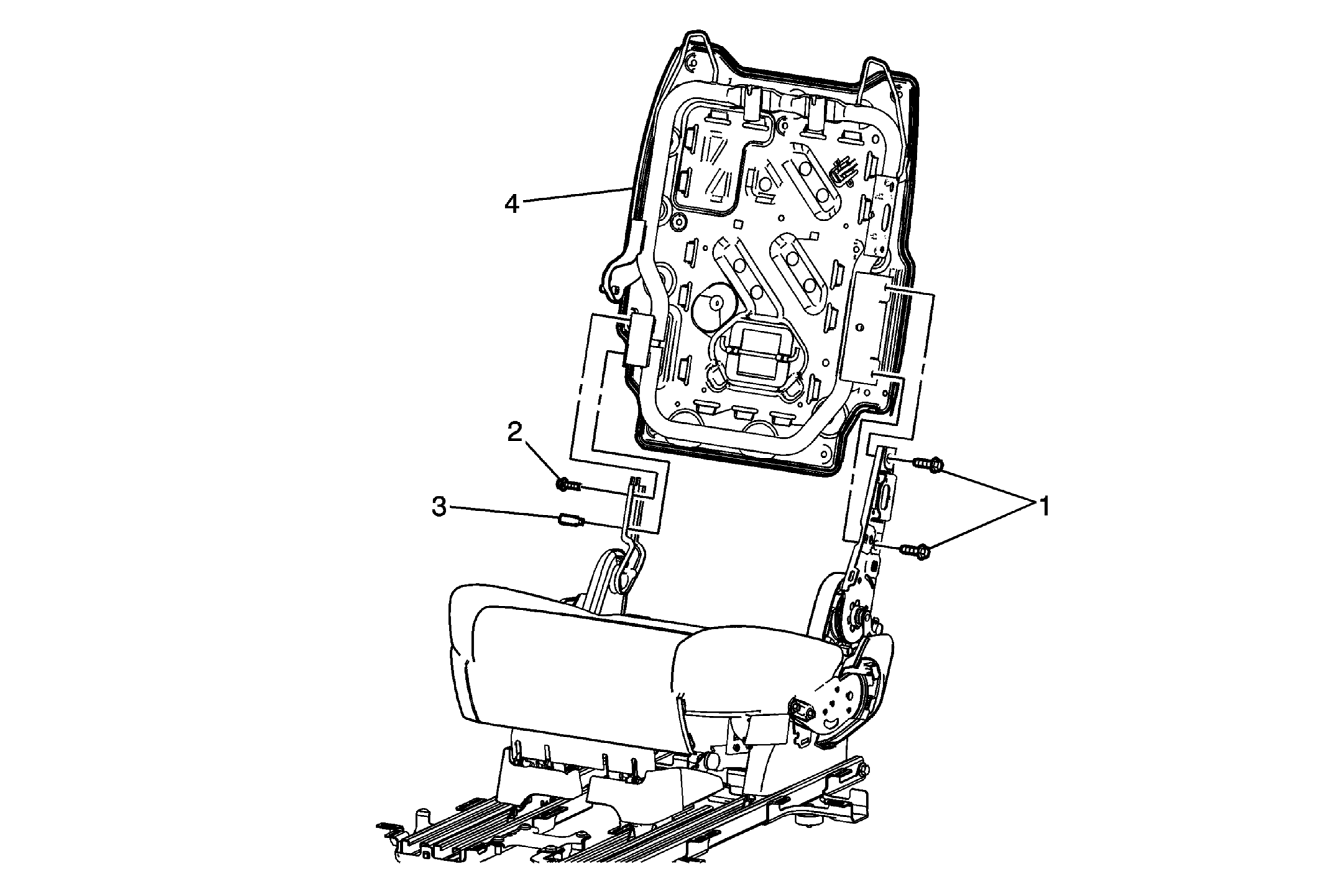

Fig 1: Rear Seat Back Cushion Frame (With 40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Removal and Installation (40%) . Remove the rear seat cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40% with Armrest) Rear Seat Back Cushion Cover and Pad Replacement (40% without Armrest) . Remove the rear seat latch release handle assembly. Refer to Rear Seat Back Cushion Latch Release Handle Replacement (40%) . Remove the rear seat back cushion stowage latch actuator. Refer to Rear Seat Back Cushion Stowage Latch Actuator Replacement (40%) .
1	Rear Seat Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . TIP: Use a grease pencil or marker to mark the location of the bolts for installation to ensure correct alignment of the seat back. Tighten 45 N.m (33 lb ft)
2	Rear Seat Bolt TIP: Use a grease pencil or marker to mark the location of the bolts for installation to ensure correct alignment of the seat back. Tighten 28 N.m (21 lb ft)
3	Rear Seat Recliner Bolt TIP: Use a grease pencil or marker to mark the location of the bolts for installation to ensure correct alignment of the seat back. Tighten 28 N.m (21 lb ft)
4	Rear Seat Back Frame
