Rear Seat Back Cushion Cover and Pad Replacement (40% with Armrest)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

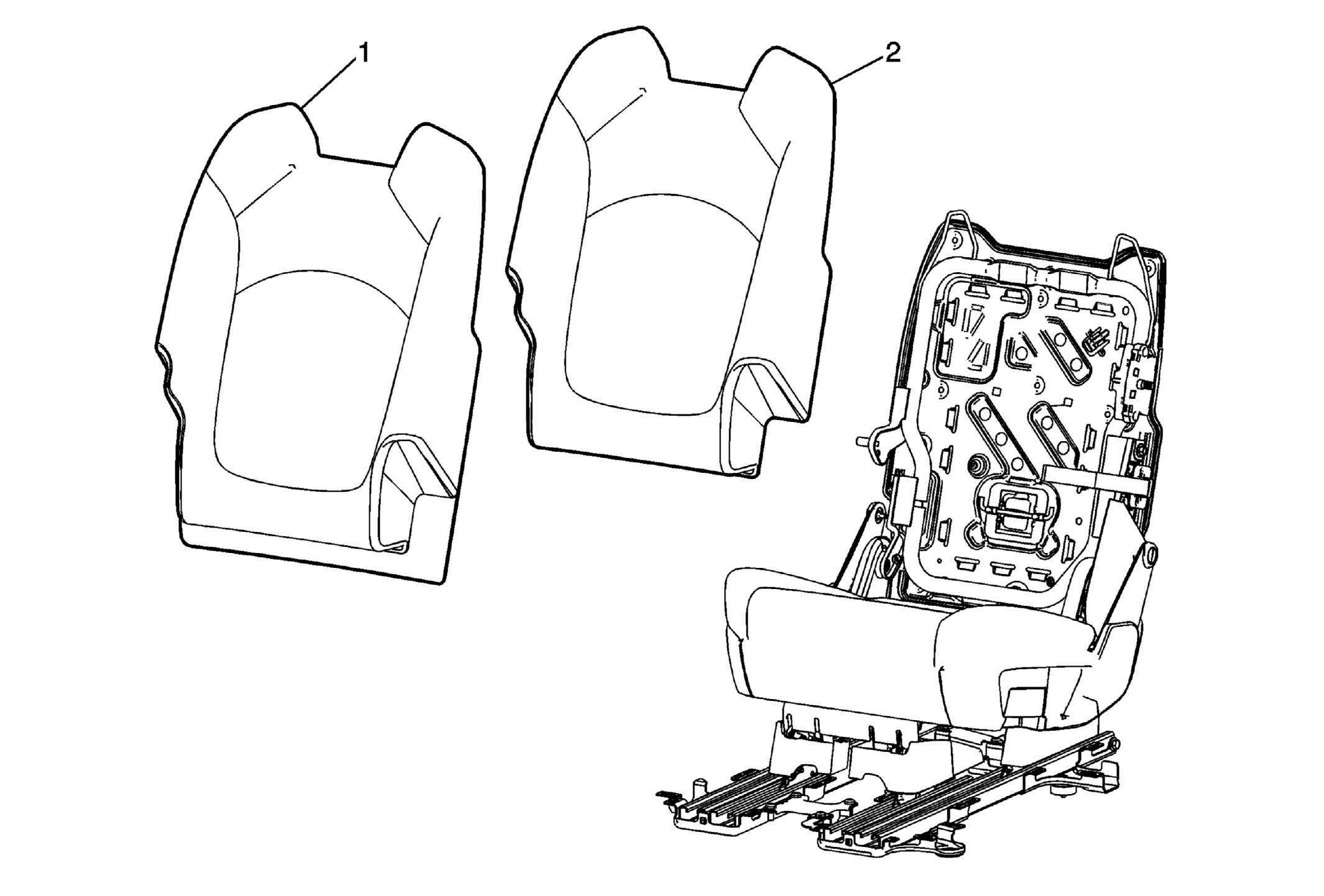

Fig 1: Rear Seat Back Cushion Cover and Pad (with 40 Percent Seat with Armrest)
GM1850565Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat. Refer to Rear Seat Removal and Installation (40%) .
  2. Remove the rear seat latch covers. Refer to Rear Seat Back Cushion Latch Cover Replacement - Inner , or Rear Seat Back Cushion Latch Cover Replacement - Outer (40%) .
  3. Remove the rear seat latch release strap outer bezel.
  4. Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement (40%) .
  5. Remove the rear seat inner recliner cover. Refer to Rear Seat Recliner Inner Finish Cover Replacement - Upper (40%) .
  6. Remove the rear seat head restraint. Refer to Rear Seat Head Restraint Replacement (40%) .
  7. Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement (40%) .
1 Rear Seat Back Cushion Cover

Procedure

  1. Unzip the seat cushion cover.
  2. Disconnect the seat back cover j-channels from the seat back frame.
  3. Remove the hog rings from the bottom of the seat back cover.
  4. Remove the rear seat back cushion cover and pad as an assembly.
2 Rear Seat Back Cushion Pad

Procedure

  1. Disengage the hog rings retaining the cover to the pad.
  2. Separate the seat back cushion cover from the pad.
