Rear Seat Back Cushion Stowage Latch Actuator Replacement (40%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

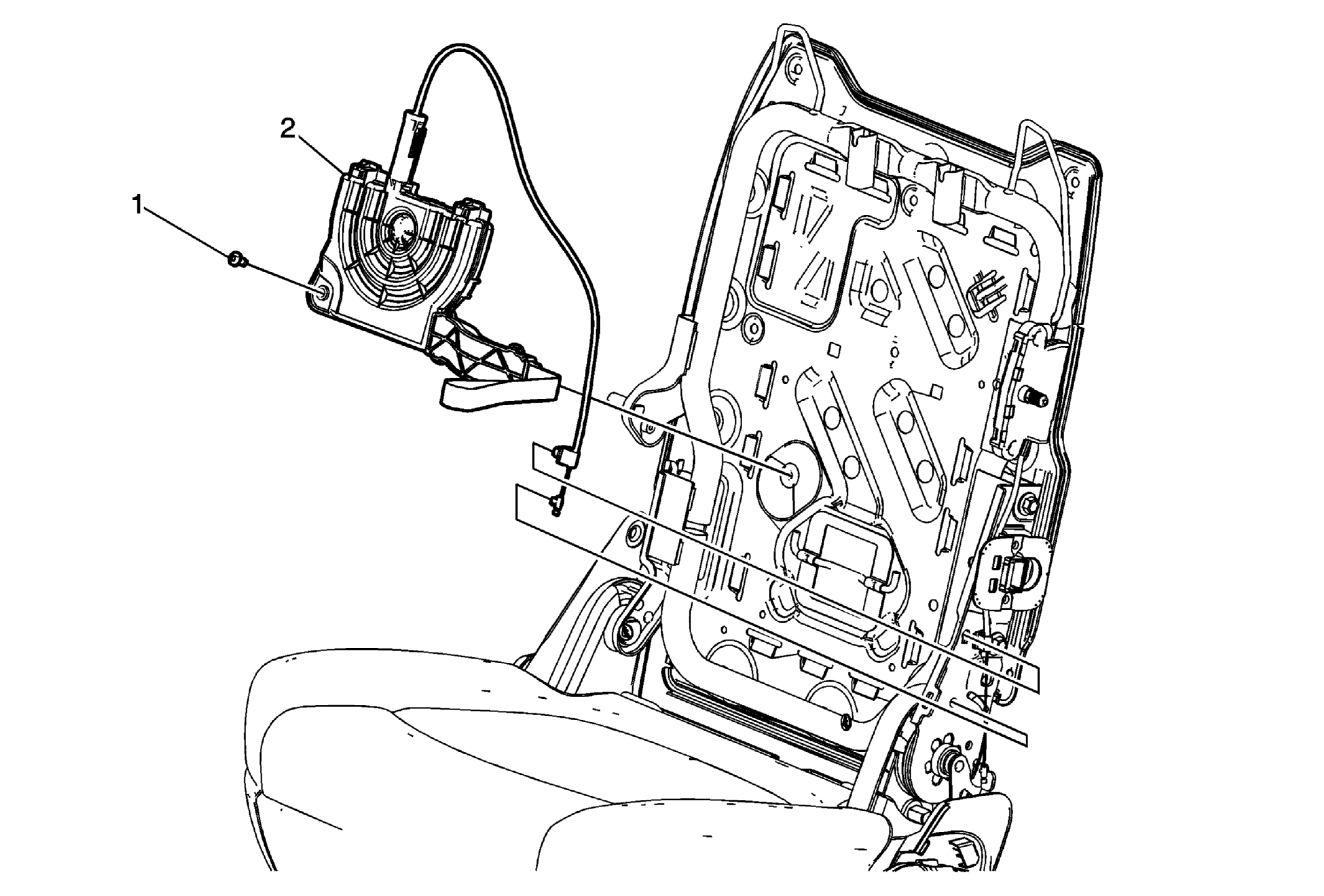

Fig 1: Rear Seat Back Cushion Stowage Latch Actuator (With 40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Removal and Installation (40%) . Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40% with Armrest) Rear Seat Back Cushion Cover and Pad Replacement (40% without Armrest) .
1	Rear Seat Screw CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Rear Seat Back Cushion Stowage Latch Actuator Procedure Disconnect the cable and note the cable routing for installation. The stowage latch actuator housing must be located over the latch release handle cable. The white area of the cable must fit into the seat back frame hooks.

Callout

Component Name

Preliminary Procedures

Remove the rear seat. Refer to Rear Seat Removal and Installation (40%) .
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40% with Armrest) Rear Seat Back Cushion Cover and Pad Replacement (40% without Armrest) .

Rear Seat Screw

CAUTION:

Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

Rear Seat Back Cushion Stowage Latch Actuator

Procedure

Disconnect the cable and note the cable routing for installation.
The stowage latch actuator housing must be located over the latch release handle cable.
The white area of the cable must fit into the seat back frame hooks.
