Driver or Passenger Seat Adjuster Track Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

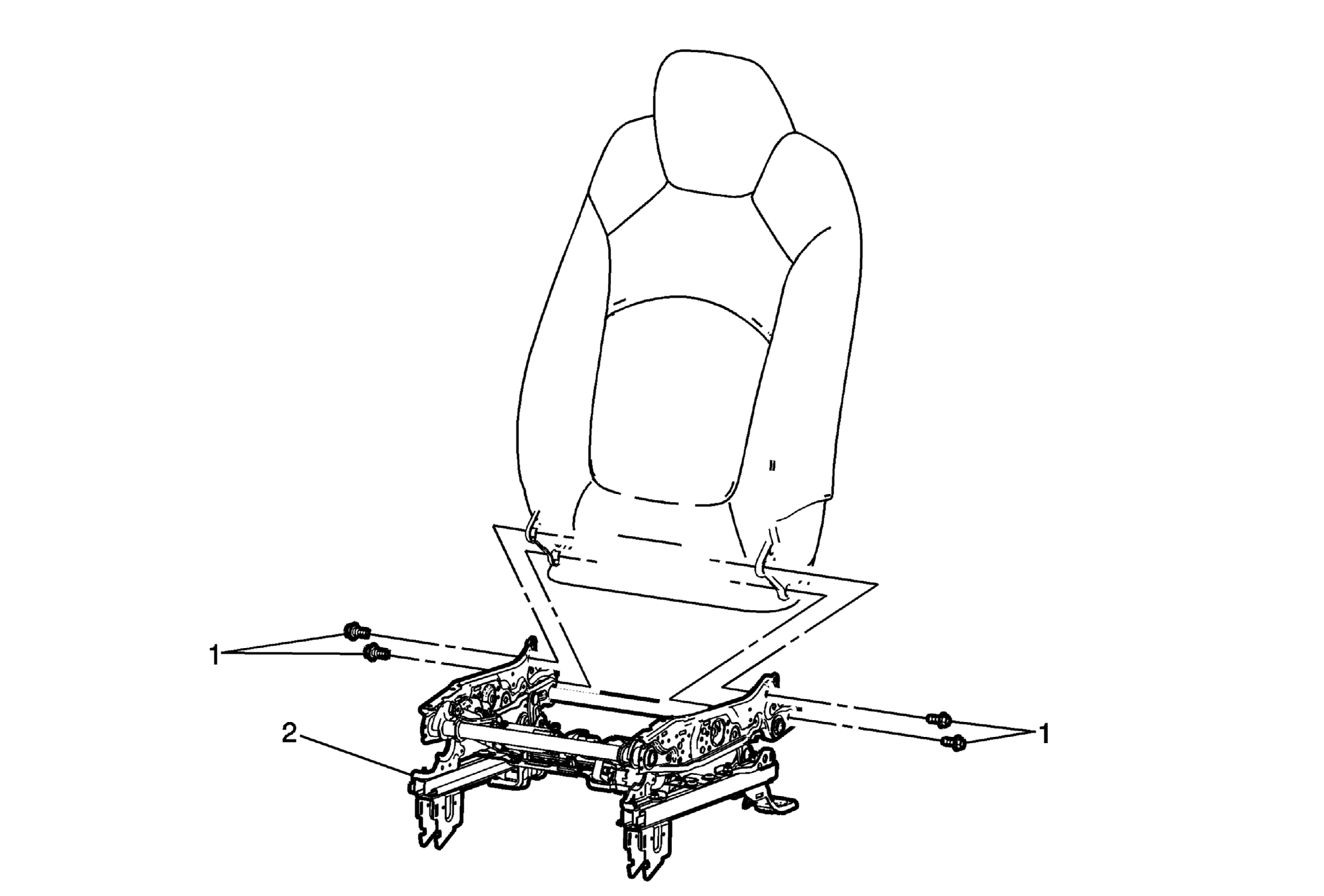

Fig 1: Driver Or Passenger Seat Adjuster Track
GM1837698Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front bucket seat. Refer to Bucket Seat Removal and Installation .
  2. Remove the front seat front finish panel. Refer to Front Seat Front Finish Panel Replacement .
  3. Remove the front seat cushion front finish panel bracket. Refer to Front Seat Cushion Front Finish Panel Bracket Replacement .
  4. Remove the driver or passenger seat adjuster shield. Refer to Driver or Passenger Seat Adjuster Shield Replacement .
  5. Remove the driver or passenger seat adjuster handle, if equipped. Refer to Front Seat Front Finish Panel Replacement .
  6. Remove the front seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
1 Front Seat Adjuster Track Assembly Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
12 N.m (9 lb ft)
2 Front Seat Adjuster Track Assembly

Procedure

  1. Disconnect any electrical connectors, if equipped.
  2. If replacing with a new front seat adjuster track assembly, transfer components as necessary.
  3. For manual track synchronization, refer to Front Seat Track Synchronization .
