Front Seat Cushion Front Finish Panel Bracket Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

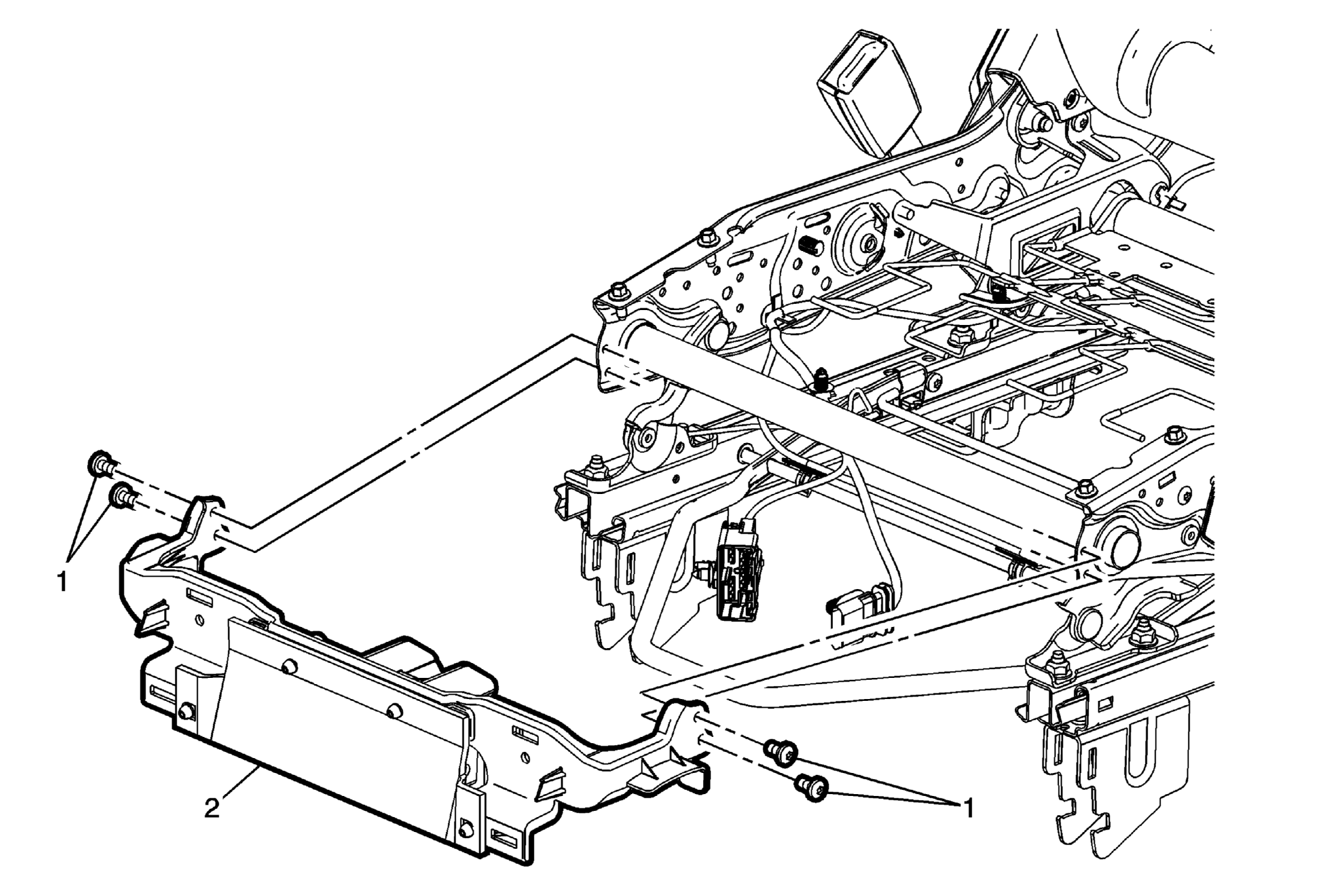

Fig 1: Front Seat Cushion Front Finish Panel Bracket
GM2916019Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front seat. Refer to Bucket Seat Removal and Installation .
  2. Remove the front seat front finish cover. Refer to Front Seat Front Finish Panel Replacement .
1 Front Seat Adjuster Finish Cover Bracket Screw (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Front Seat Adjuster Finish Cover Bracket
