Driver or Passenger Seat Adjuster Shield Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

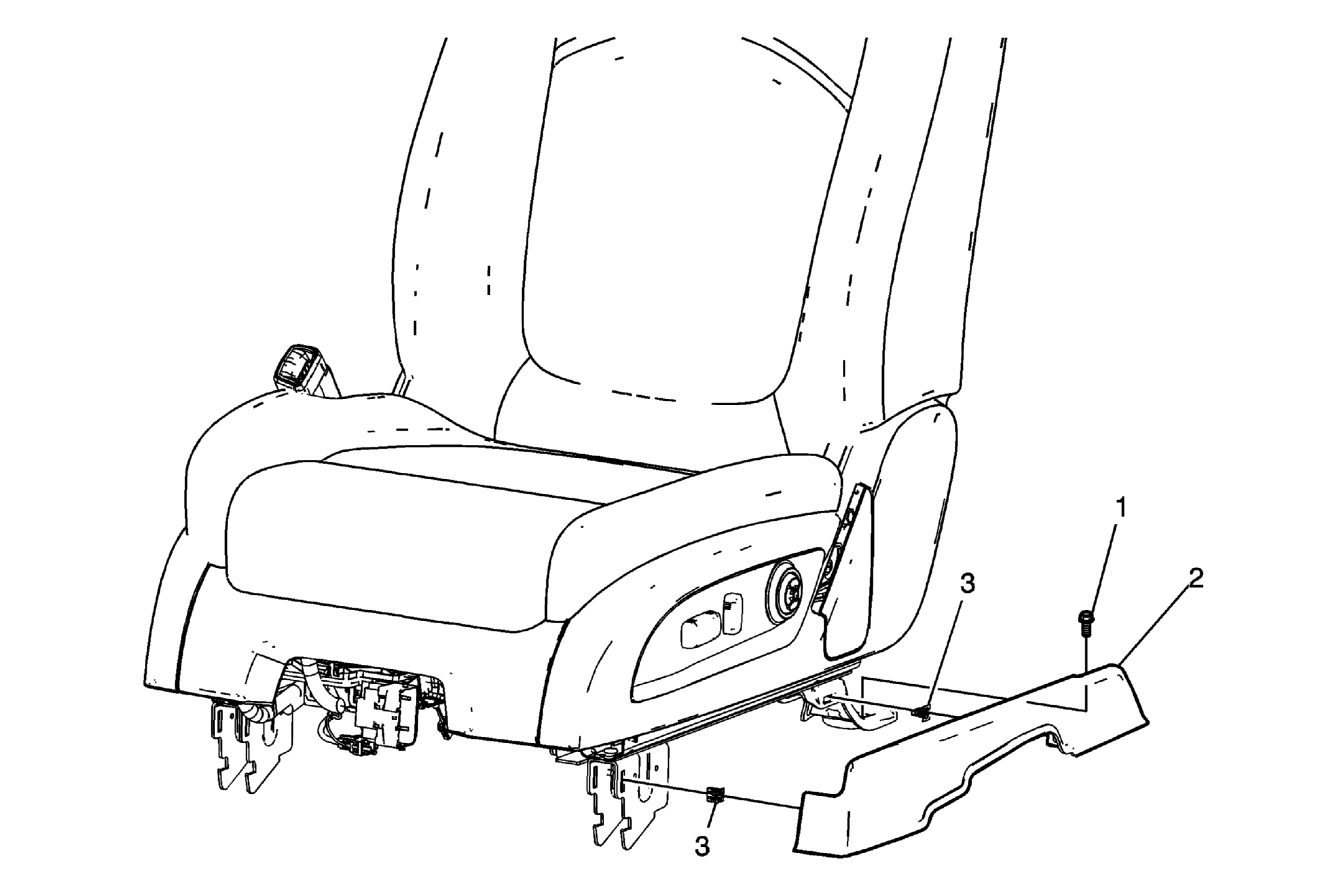

| Callout | Component Name |
|---|---|
| 1 | Seat Adjuster Shield Screw
CAUTION:
Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in) |
| 2 | Seat Adjuster Shield Assembly |
| 3 | Seat Adjuster Shield Retainer Clip (Qty: 2) |
