3rd Row Seat Back Hinge Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

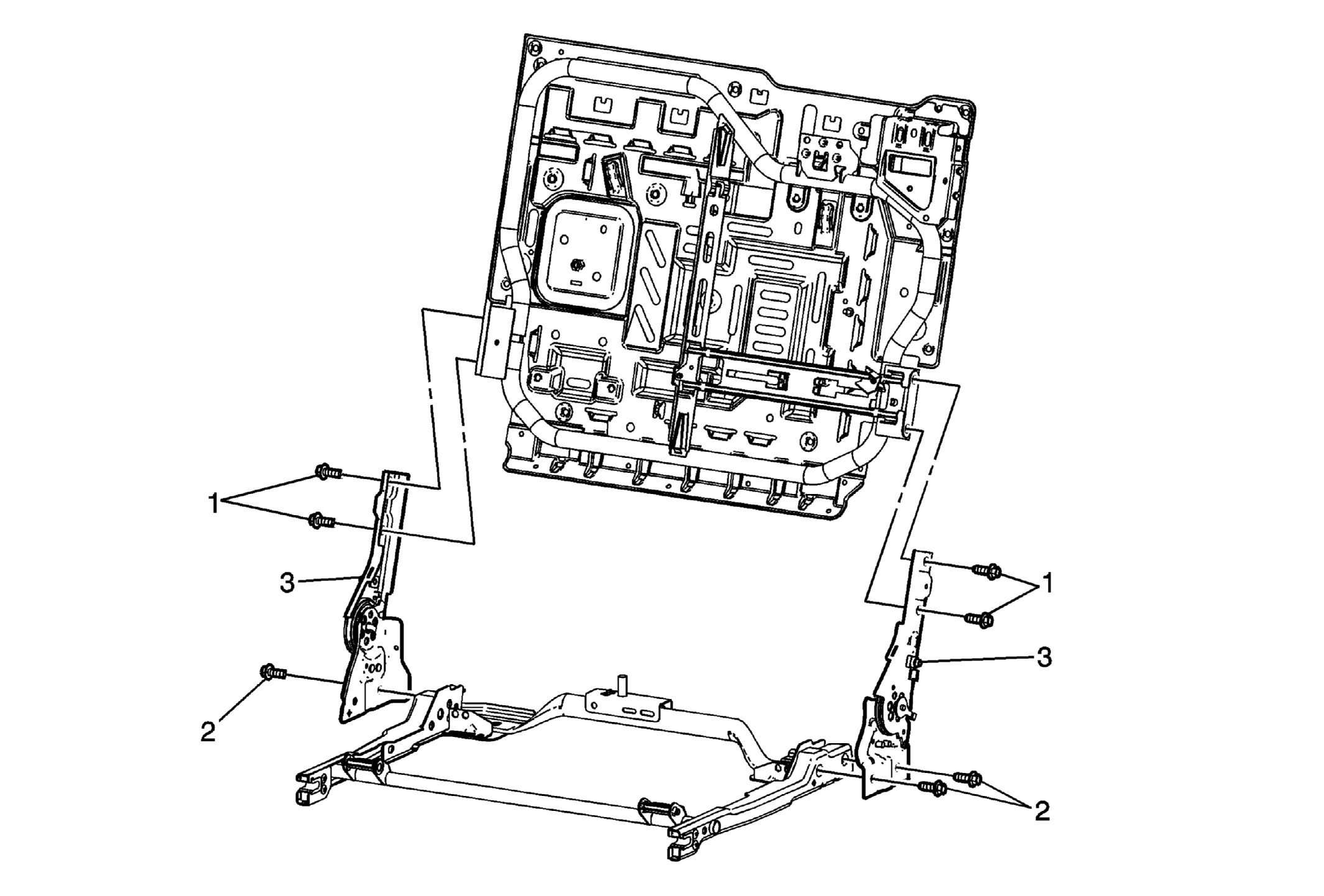

Fig 1: 3rd Row Seat Back Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Unzip the side zipper of the rear seat number 2 back cover. Remove the rear seat No. 2 cushion cover and pad. Refer to 3rd Row Seat Cushion Cover and Pad Replacement . Remove the recliner inner finish covers. Refer to Rear Seat Number 2 Recliner Inner Finish Cover Replacement . Remove the rear seat number 2 belt buckle. Refer to 3rd Row Seat Buckle Side Belt Replacement (40%)3rd Row Seat Buckle Side Belt Replacement (60%) .
1	Rear Seat No. 2 Back Cushion Frame Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 55 N.m (41 lb ft)
2	Rear Seat No. 2 Riser Bolt (Qty: 3) Tighten 55 N.m (41 lb ft)
3	Rear Seat No. 2 Back Cushion Hinge Assembly (Qty: 2)
