3rd Row Seat Cushion Cover and Pad Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

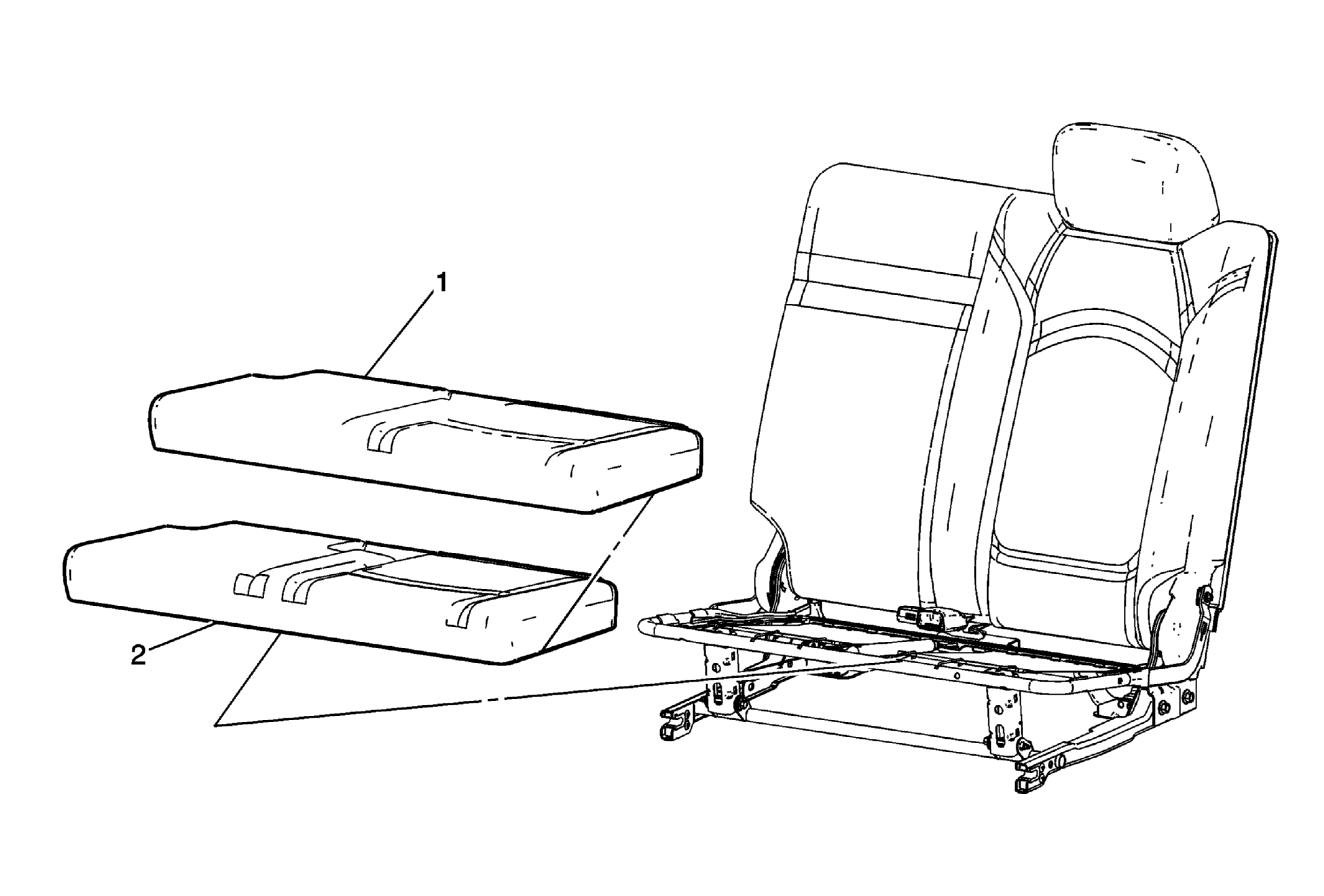

Fig 1: 3rd Row Seat Cushion Cover and Pad

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat No. 2 assembly. Refer to 3rd Row Seat Removal and Installation .
1	Rear Seat No. 2 Cushion Cover Procedure Disconnect the j-channel from the seat cushion frame. Remove the seat cushion cover and pad as an assembly from the frame. Remove the seat cushion cover from the pad.
2	Rear Seat No. 2 Cushion Pad

Callout

Component Name

Preliminary Procedure
Remove the rear seat No. 2 assembly. Refer to 3rd Row Seat Removal and Installation .

Rear Seat No. 2 Cushion Cover

Procedure

Disconnect the j-channel from the seat cushion frame.
Remove the seat cushion cover and pad as an assembly from the frame.
Remove the seat cushion cover from the pad.

Rear Seat No. 2 Cushion Pad
