Rear Seat Number 2 Recliner Inner Finish Cover Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

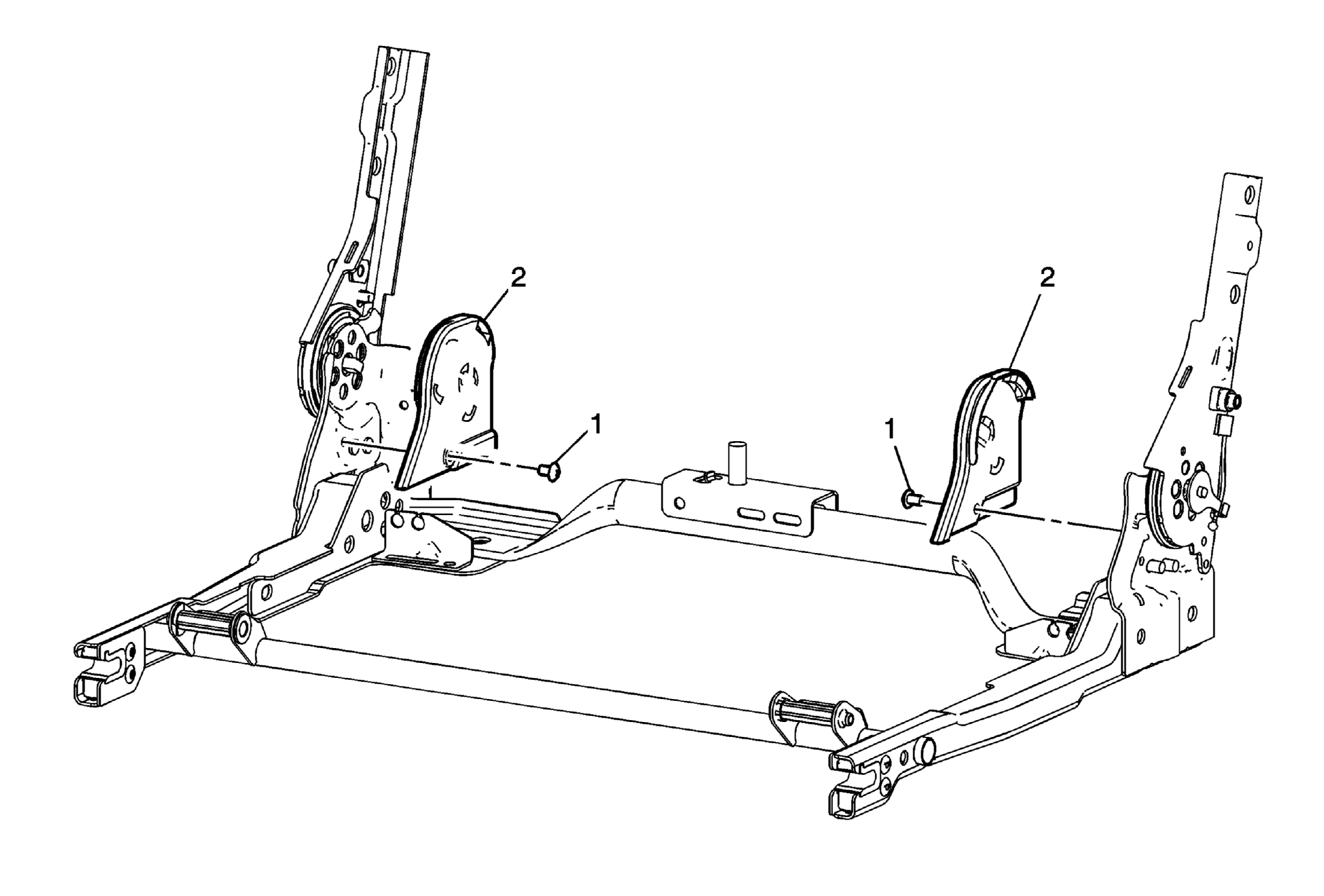

Fig 1: Rear Seat Number 2 Recliner Inner Finish Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat No. 2 back cushion cover and pad. Refer to 3rd Row Seat Back Cover and Pad Replacement . Remove the rear seat No. 2 cushion cover and pad. Refer to 3rd Row Seat Cushion Cover and Pad Replacement .
1	Rear Seat No. 2 Recliner Inner Finish Cover Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
2	Rear Seat No. 2 Recliner Inner Finish Cover (Qty: 2)

Callout

Component Name

Preliminary Procedures

Remove the rear seat No. 2 back cushion cover and pad. Refer to 3rd Row Seat Back Cover and Pad Replacement .
Remove the rear seat No. 2 cushion cover and pad. Refer to 3rd Row Seat Cushion Cover and Pad Replacement .

Rear Seat No. 2 Recliner Inner Finish Cover Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
5 N.m (44 lb in)

Rear Seat No. 2 Recliner Inner Finish Cover (Qty: 2)
