3rd Row Seat Buckle Side Belt Replacement (60%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

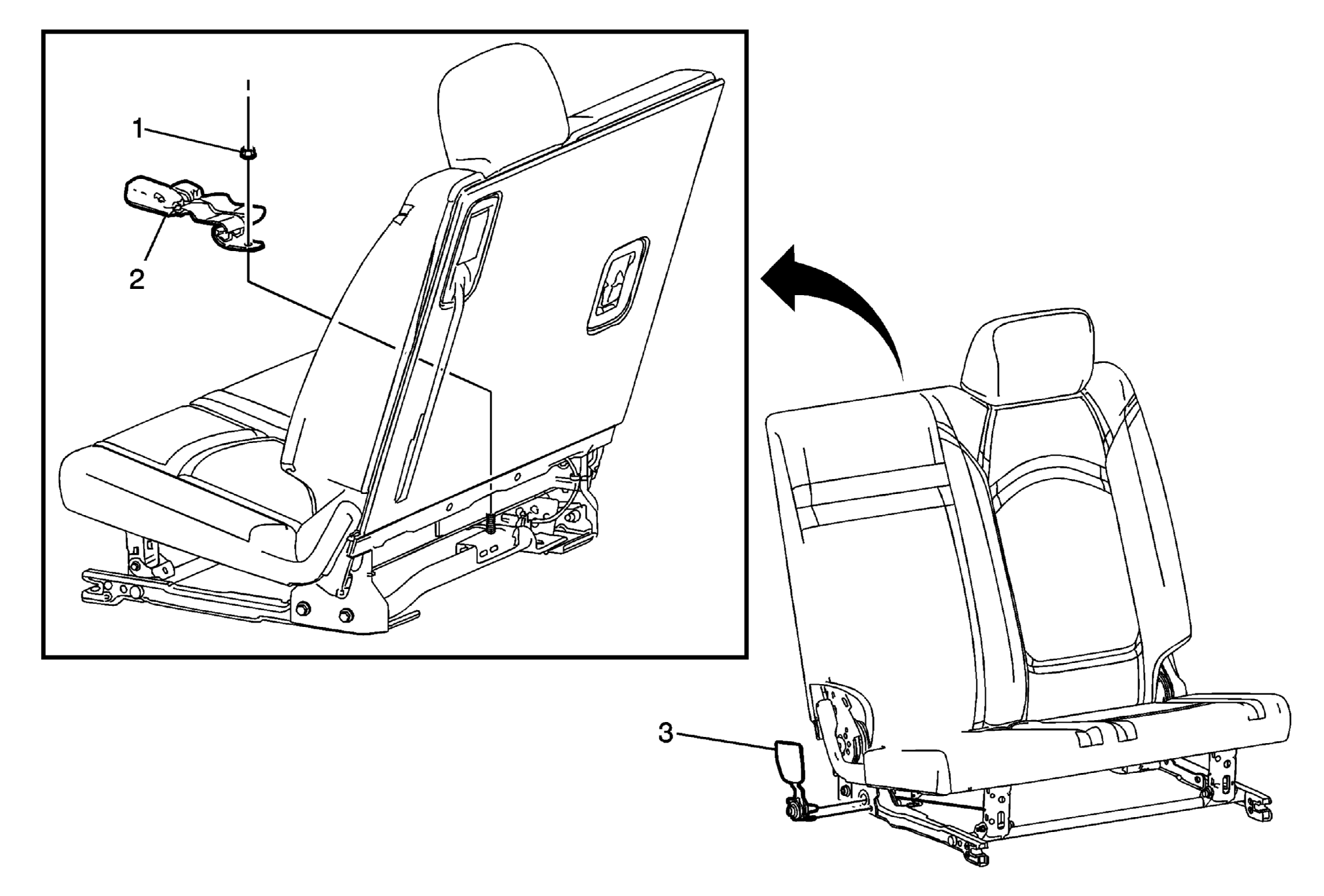

Fig 1: 3rd Row Seat Buckle Side Belt (60%)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove third row seat. Refer to 3rd Row Seat Removal and Installation . Remove rear storage compartment if equipped. Refer to Rear Storage Compartment Replacement .
1	Rear Seat No. 2 (Buckle Side) Nut CAUTION: Refer to Fastener Caution . Tighten 53 N.m (39 lb ft)
2	Rear Seat No. 2 (Buckle Side) Belt Assembly
3	Rear Seat No. 2 Center (Buckle Side) Belt Assembly Tighten 53 N.m (39 lb ft)
