Steering Column Housing Cover Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

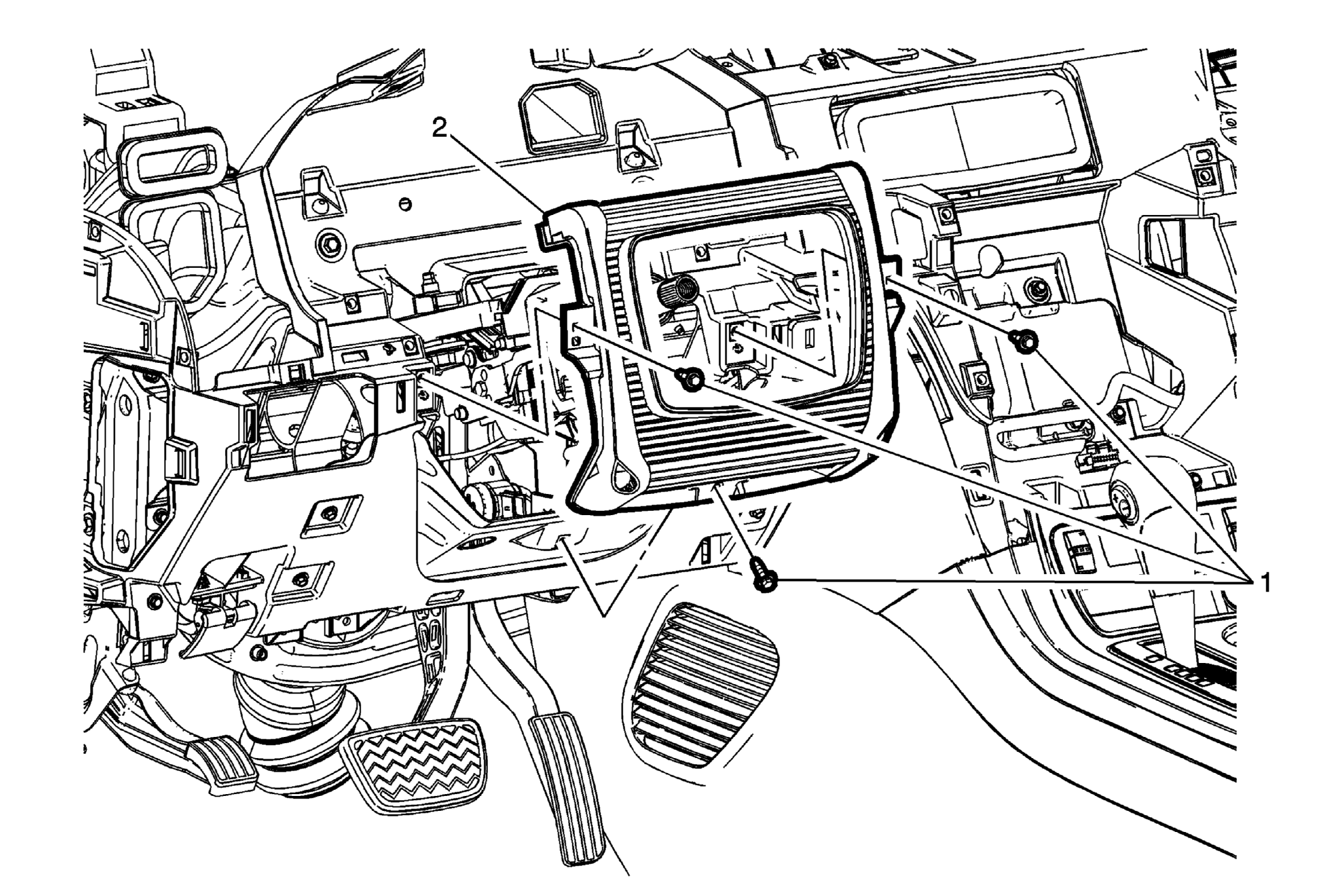

Fig 1: Steering Column Housing Cover
GM2875121Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the steering wheel. Refer to Steering Wheel Replacement .
  3. Remove the turn signal multifunction switch assembly. Refer to Turn Signal Multifunction Switch Replacement .
  4. Remove the turn signal switch bracket. Refer to Turn Signal Switch Bracket Replacement .
  5. Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement (Acadia w/RPO UV6) Instrument Panel Trim Pad Replacement (Acadia w/o RPO UV6) Instrument Panel Trim Pad Replacement (Enclave) Instrument Panel Trim Pad Replacement (Traverse) .
  6. Remove the driver knee bolster. Refer to Driver Knee Bolster Replacement (Acadia) Driver Knee Bolster Replacement (Enclave) Driver Knee Bolster Replacement (Traverse) .
1 Steering Column Housing Cover Screw (Qty: 3)
CAUTION:

Refer to Fastener Caution .
2 Steering Column Housing Cover Assembly
