Steering Wheel Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

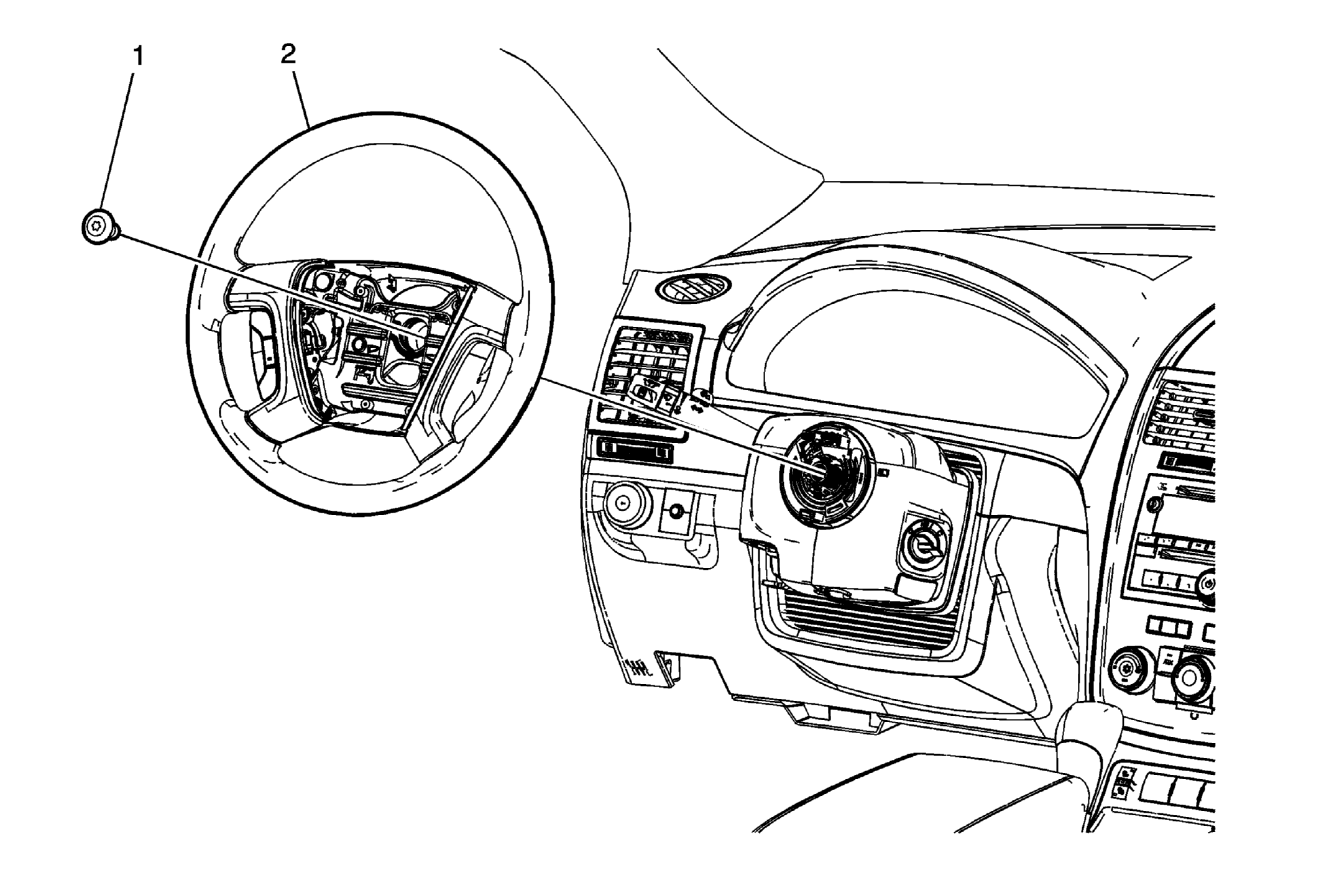

Fig 1: Steering Wheel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement .
1	Steering Wheel Bolt CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	Steering Wheel Procedure Disconnect all electrical connectors as needed. Remove the steering wheel.

Callout

Component Name

Preliminary Procedure
Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement .

Steering Wheel Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
50 N.m (37 lb ft)

Steering Wheel

Procedure

Disconnect all electrical connectors as needed.
Remove the steering wheel.
