Drive Belt Tensioner Replacement

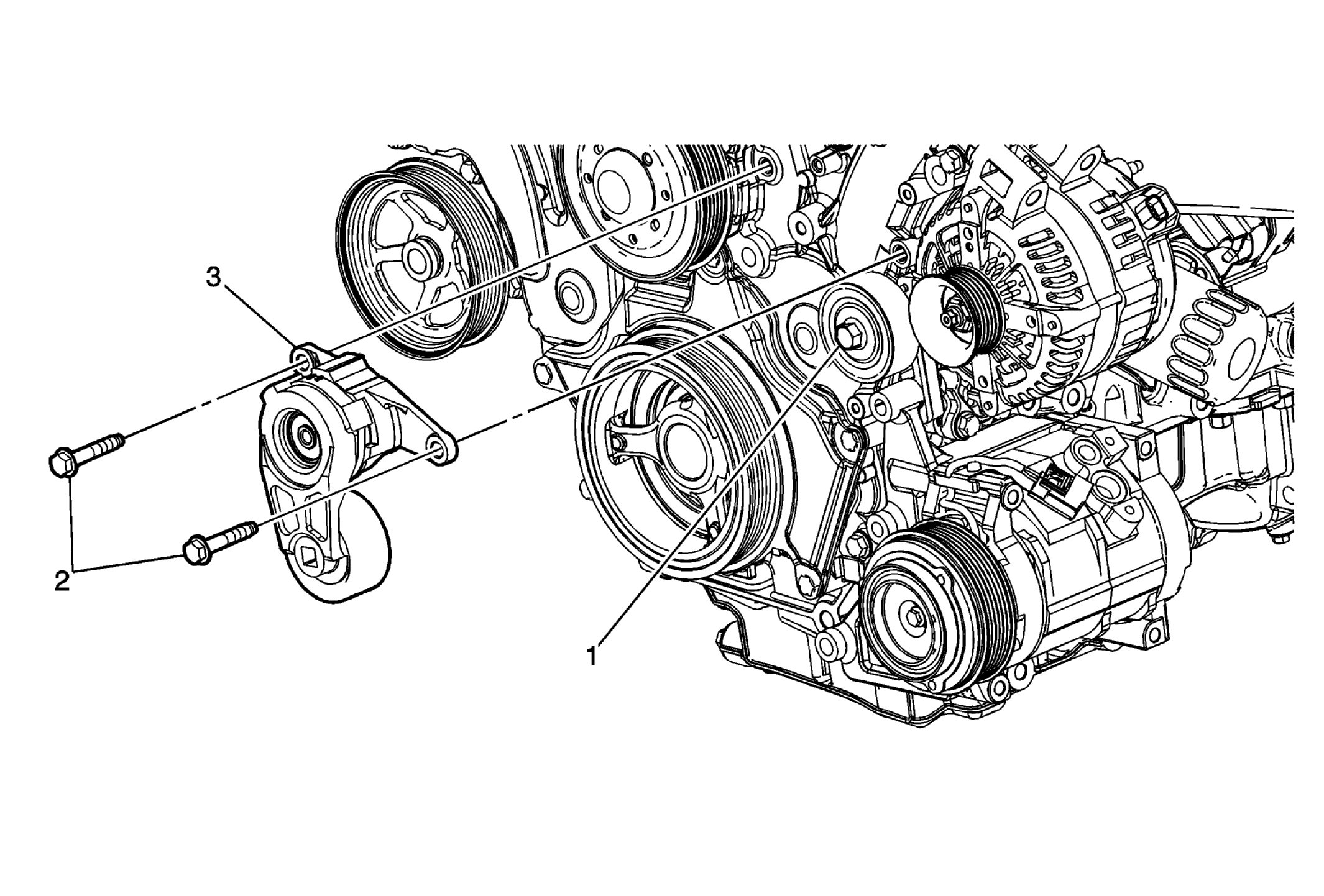

Fig 1: View Of Drive Belt Tensioner
GM1860190Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the right engine strut mount. Refer to Engine Mount Strut Replacement - Right Side .
  2. Remove the right engine mount strut bracket. Refer to Engine Mount Strut Bracket Replacement - Right Side .
  3. Remove the drive belt. Refer to Drive Belt Replacement .
1 Idler Pulley Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
50 N.m (37 lb ft)
2 Tensioner Bolt
Tighten
25 N.m (18 lb ft)
3 Tensioner
TIP:  Remove wire harness retainer from tensioner.
