Drive Belt Replacement

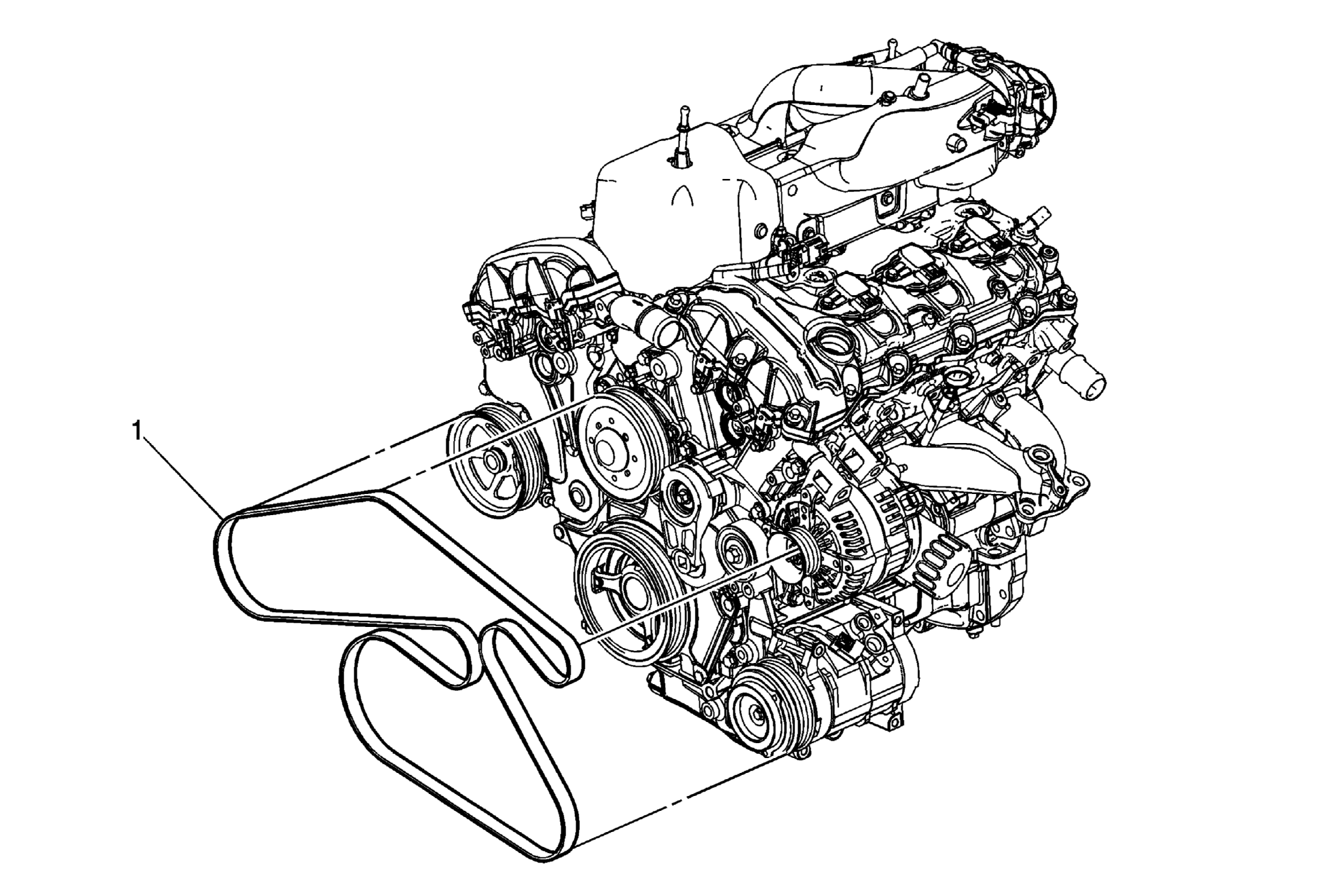

Fig 1: Identifying Drive Belt Routing
GM1860154Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) .
  2. Rotate the drive belt tensioner clockwise to release the drive belt tension.
  3. Slide the drive belt off of the belt idler pulley.
  4. Slowly release the drive belt tensioner.
1 Drive Belt
