Engine Mount Strut Bracket Replacement - Right Side

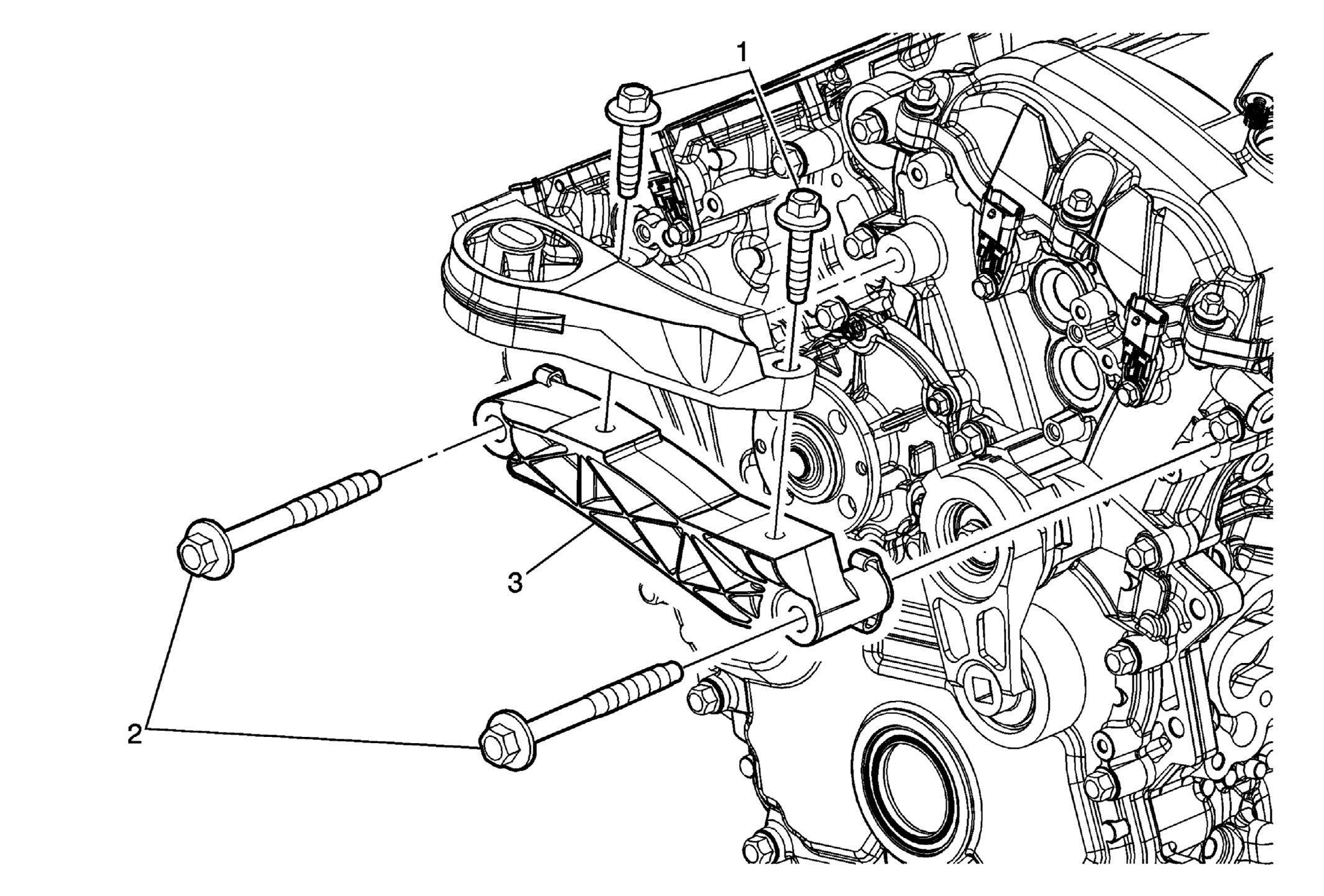

Fig 1: Identifying Right Side Engine Mount Strut Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the right engine mount strut. Refer to Engine Mount Strut Replacement - Right Side .
1	Engine Mount Strut Bolt CAUTION: Refer to Fastener Caution . Tighten  58 N.m (43 lb ft)
2	Engine Mount Strut Bracket Bolt Tighten  90 N.m (66 lb ft)
3	Engine Mount Strut Bracket
