Engine Mount Strut Replacement - Right Side

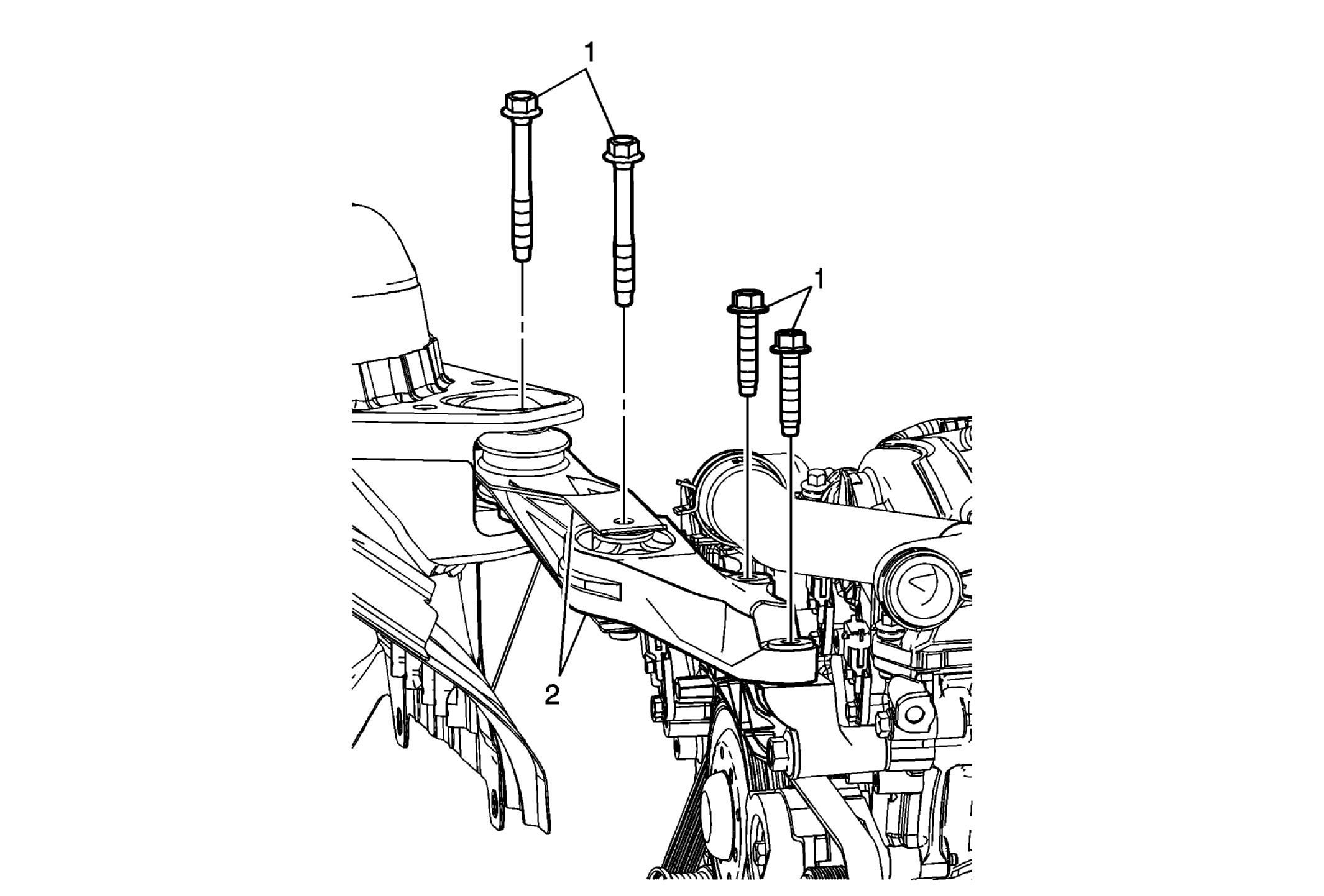

Fig 1: View Of Right Side Engine Mount Strut
GM1860730Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the radiator inlet hose from the water outlet tube. Refer to Radiator Inlet Hose Replacement .
  2. Remove the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Replacement .
  3. Remove the wire harness retainer from the underhood electrical center bracket and reposition the harness.
  4. Remove the underhood electrical center bracket bolts and bracket.
1 Engine Mount Strut Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
58 N.m (43 lb ft)
2 Engine Mount Strut
