Headlining Trim Panel Replacement

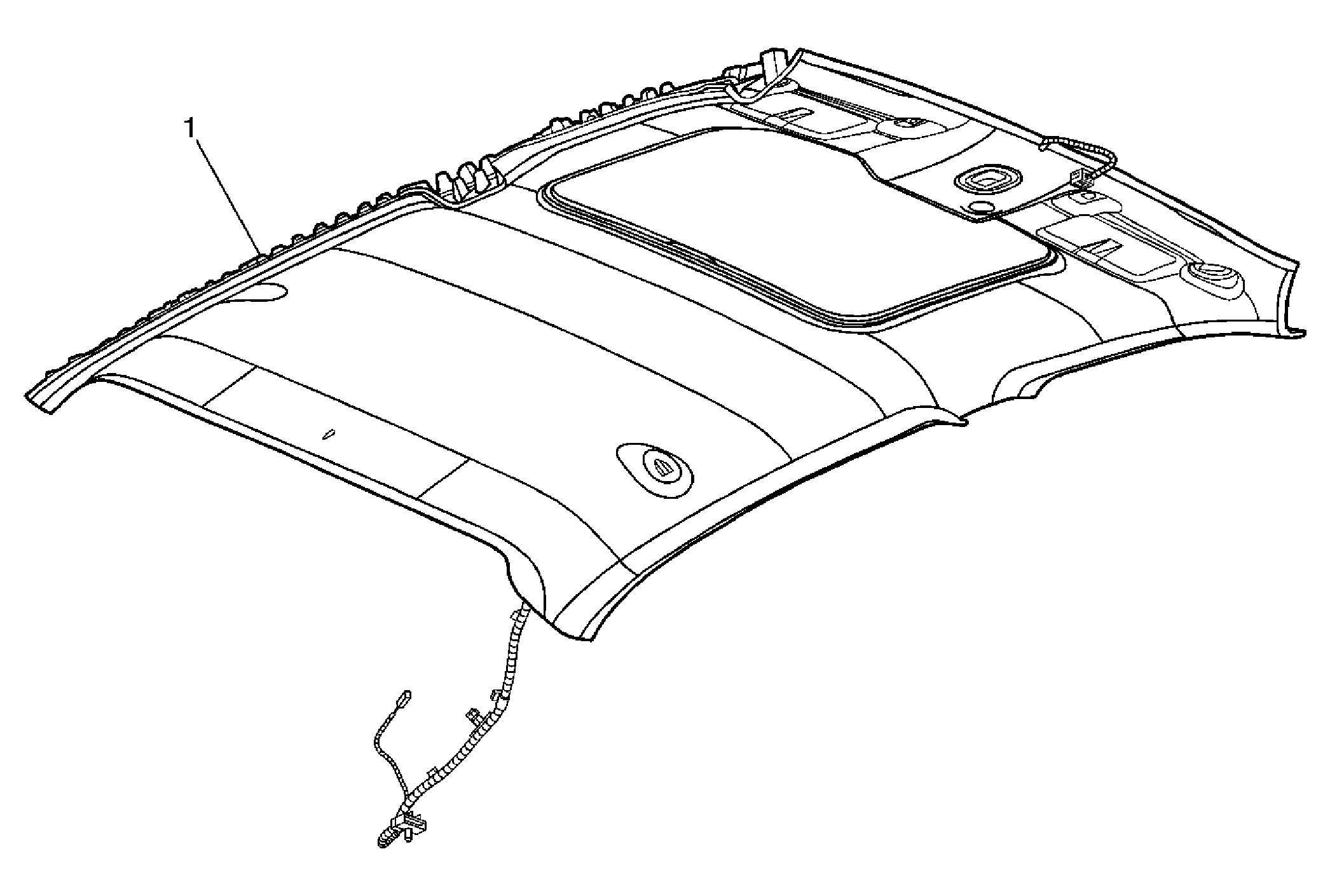

Fig 1: View Of Headliner assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury. CAUTION: Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced. CAUTION: If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced. Preliminary Procedures Remove the assist handles. Refer to Assist Handle Replacement . Remove the sunshades. Refer to Sunshade Replacement . Remove the sunshade retainer. Refer to Sunshade Retainer Bezel Replacement . Remove the A pillar trim panels. Refer to Windshield Garnish Molding Replacement . Remove the coat hooks. Refer to Coat Hook Replacement . Remove the upper B or lock pillar trim. Refer to Center Pillar Upper Garnish Molding Replacement (Sedan) or Lock Pillar Upper Garnish Molding Replacement (Coupe) or Lock Pillar Upper Garnish Molding Replacement (Sedan) .
1	Headliner Assembly Disconnect the electrical connections. Fully recline the front seats and move to most rearward position. Cover the instrument panel to protect from damage. Remove through the front passenger door opening. Tip: When installing a new headliner, tape any unused connector to the headliner with a high adhesive tape.

Callout

Component Name

WARNING: Do not attempt to repair or alter the head impact energy-absorbing material glued to the headliner or to the garnish trims. If the material is damaged, replace the headliner and/or the garnish trim. Failure to do so could result in personal injury.

CAUTION: Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

CAUTION: If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

Preliminary Procedures

Remove the assist handles. Refer to Assist Handle Replacement .
Remove the sunshades. Refer to Sunshade Replacement .
Remove the sunshade retainer. Refer to Sunshade Retainer Bezel Replacement .
Remove the A pillar trim panels. Refer to Windshield Garnish Molding Replacement .
Remove the coat hooks. Refer to Coat Hook Replacement .
Remove the upper B or lock pillar trim. Refer to Center Pillar Upper Garnish Molding Replacement (Sedan) or Lock Pillar Upper Garnish Molding Replacement (Coupe) or Lock Pillar Upper Garnish Molding Replacement (Sedan) .

Headliner Assembly

Disconnect the electrical connections.
Fully recline the front seats and move to most rearward position.
Cover the instrument panel to protect from damage.
Remove through the front passenger door opening.

Tip: When installing a new headliner, tape any unused connector to the headliner with a high adhesive tape.
