Windshield Garnish Molding Replacement

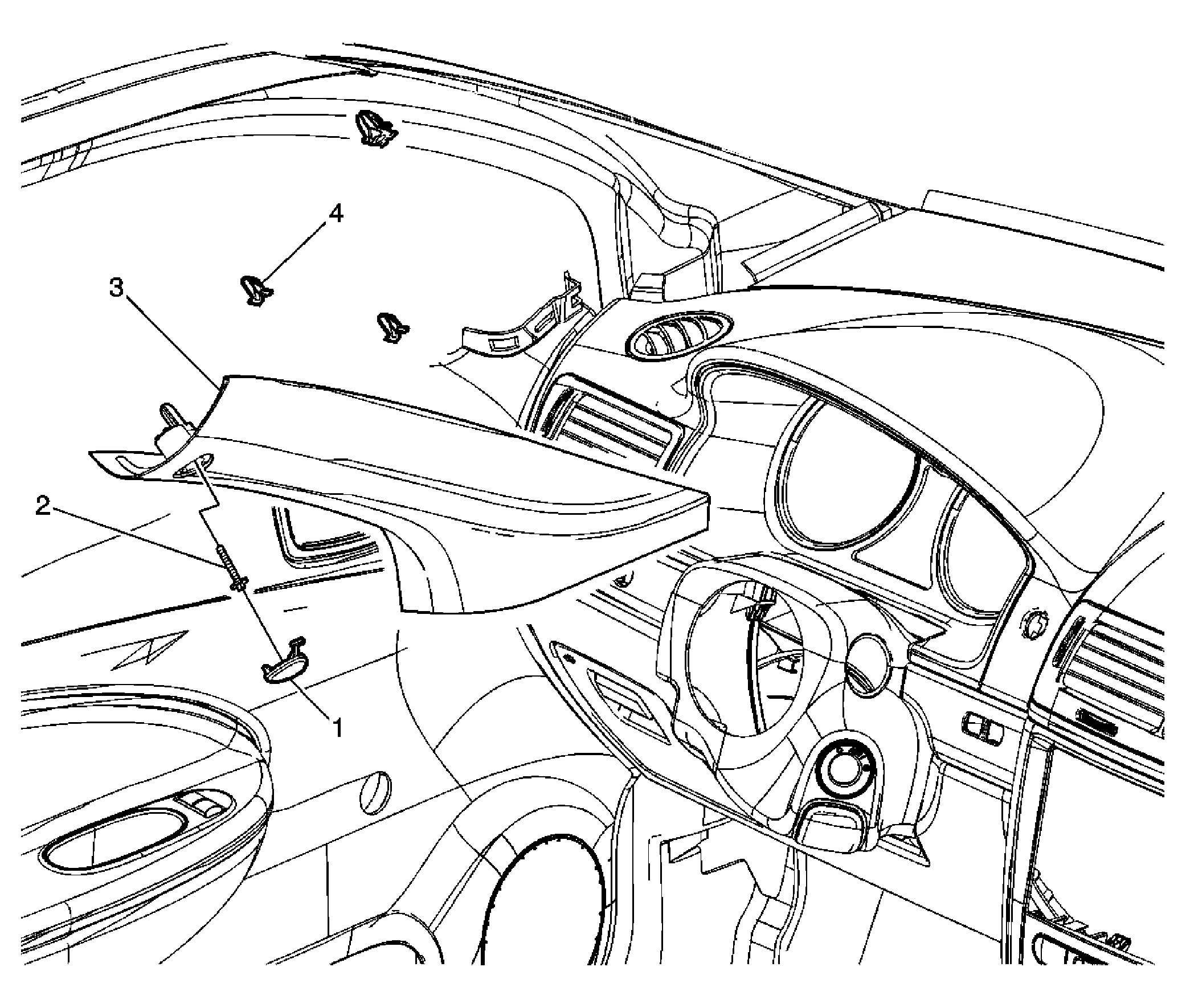

Fig 1: Windshield Garnish Molding

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Garnish Molding Bolt Hole Finish Plug
2	Windshield Garnish Molding Screw CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
3	Windshield Garnish Molding Assembly Procedure:  Disconnect the electrical connector, if equipped.
4	Windshield Garnish Molding Retaining Clip
