Coat Hook Replacement

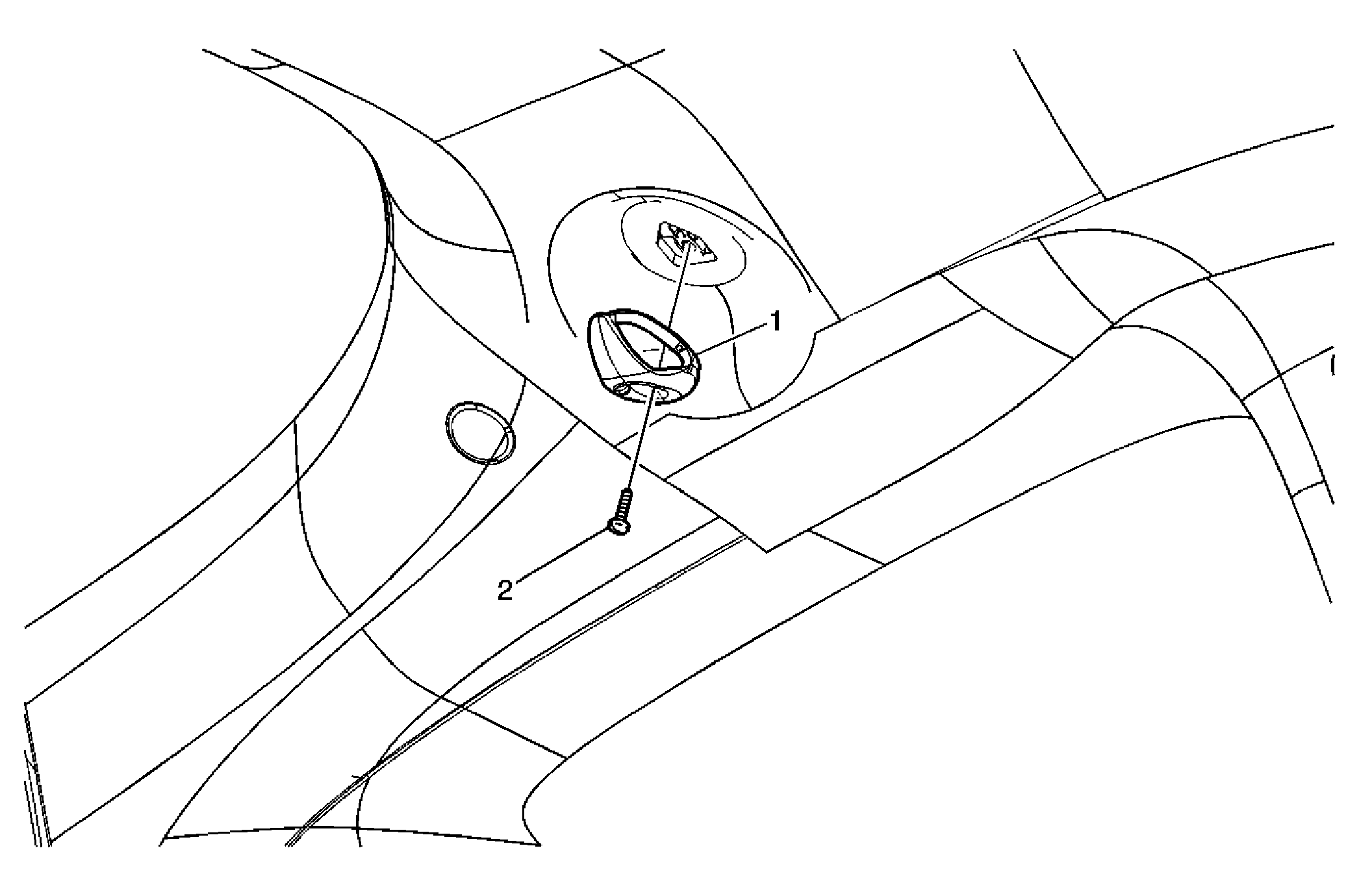

Fig 1: Coat Hook
GM1544861Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Coat Hook
2 Coat Hook Screw
CAUTION: Refer to Fastener Caution .

Tighten:  6 N.m (53 lb in)
