Installation Procedure

WARNING: This page is about a different variant/trim than selected.

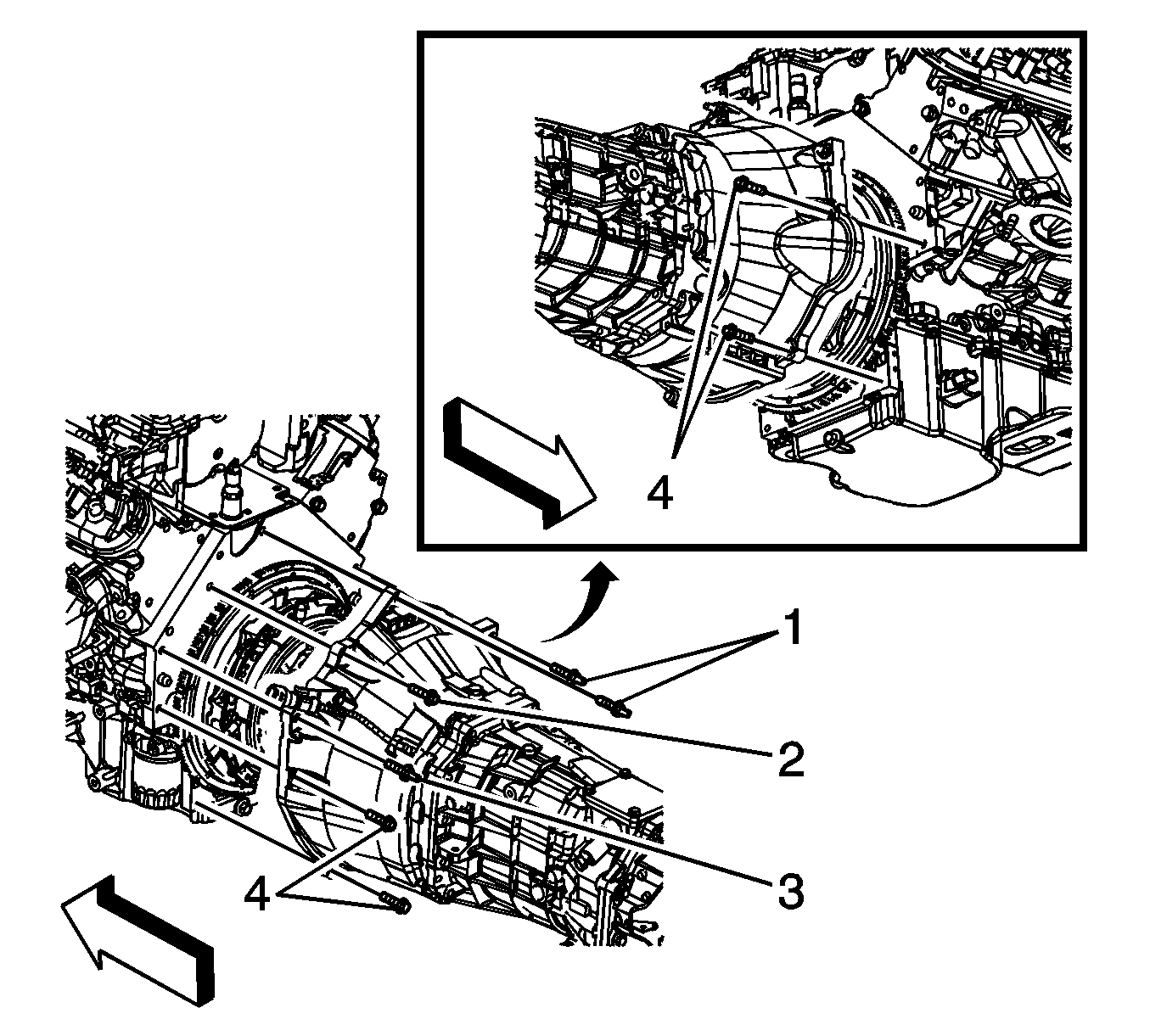

Fig 1: Identifying Transmission Clutch Housing To Engine Bolts & Studs

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the transmission clutch housing to engine bolts and studs (1, 4) and tighten to 50 N.m (37 lb ft).
Connect the clutch hydraulic hose to the transmission.
Raise the transmission back into place.
Connect the shift control assembly to the transmission. Refer to Shift Control Assembly Replacement .
Connect the following electrical connectors:
- TFT sensor
- Backup lamp switch
- Vehicle Speed Sensor
- Reverse lockout solenoid
- Gear select/skip shift solenoid

CAUTION: Care should be taken when raising the transmission so that the shifter boot does not get damaged.

Raise the transmission assembly.
Install the transmission support. Refer to Transmission Mount Replacement .
Remove the transmission jack.
Install the propeller shaft. Refer to Two-Piece Propeller Shaft Replacement .
Check the transmission fluid and fill as necessary.
Install both front catalytic converters. Refer to Catalytic Converter Replacement - Left Side (LLT) or Catalytic Converter Replacement - Left Side (L99/LS3) and Catalytic Converter Replacement - Right Side (LLT) or Catalytic Converter Replacement - Right Side (L99/LS3) .
Install the exhaust system. Refer to Exhaust Muffler with Resonator, Exhaust, and Tail Pipe Replacement (H-Pipe) or Exhaust Muffler with Resonator, Exhaust, and Tail Pipe Replacement (Vehicle Service) .
Lower the vehicle.
