Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure
- Remove the quarter upper trim finish panel. Refer to Rear Quarter Upper Trim Panel Replacement (Except AXS) or Rear Quarter Upper Trim Panel Replacement (with AXS) .
- Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
- Remove the floor trim plate. Refer to Rear Floor Trim Plate Replacement .
|

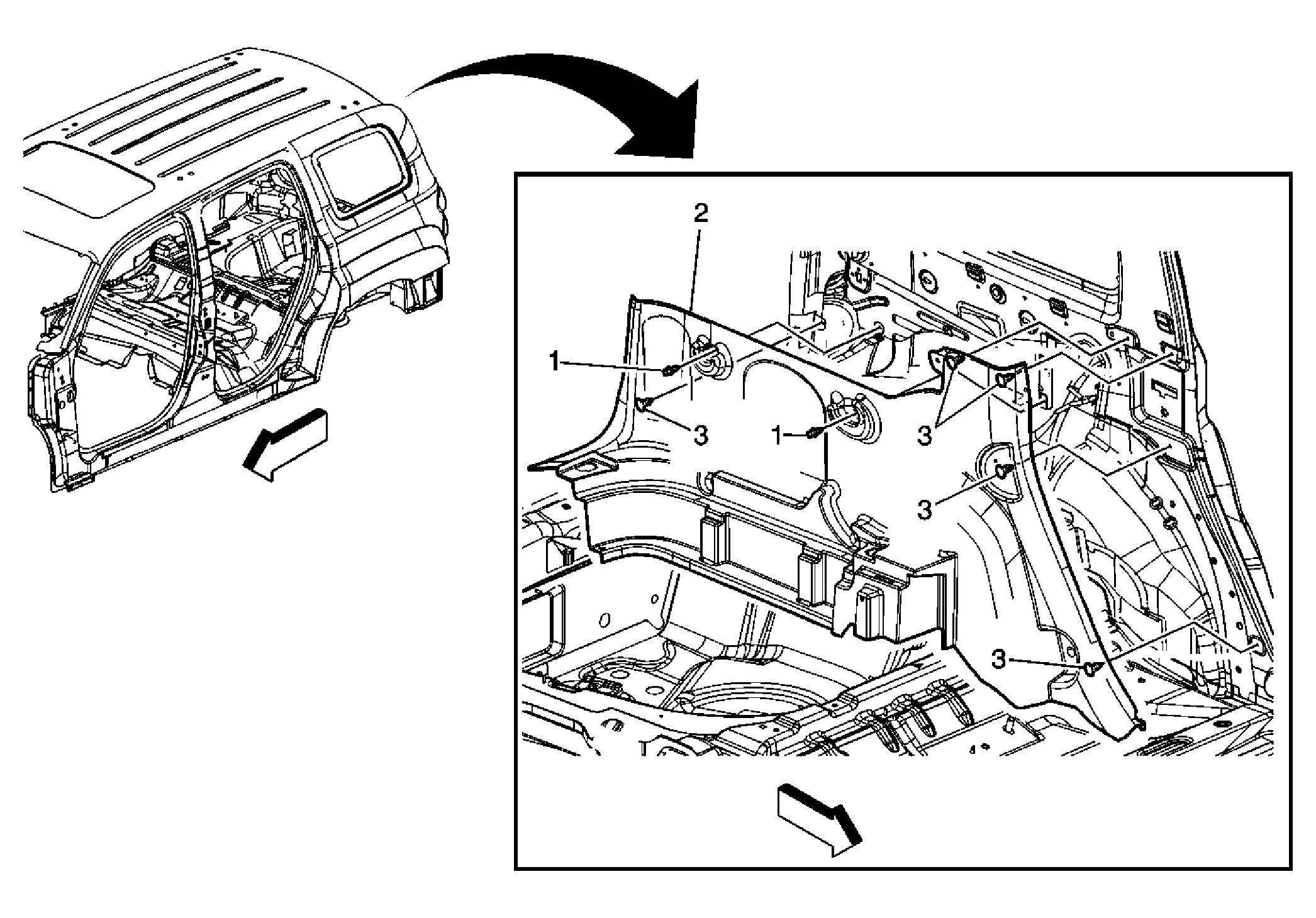

| 1 |
Retainer, Quarter Lower Trim Finish (Qty: 2) |
| 2 |
Panel Assembly, Quarter Lower Trim Finish
- Remove the cargo tie down loop anchor plates and bolts.
Tighten:
9 N.m (80 lb in)
- Remove the rear passenger seat belt guide.
- Disconnect the rear passenger seat belt so that the trim panel can be removed around the seat belt. Refer to Rear Seat Belt Replacement
.
- Pull the trim panel toward the inside of the vehicle to disengage the retainers.
|
| 3 |
Retainer, Quarter Lower Trim Finish Panel (Qty: 5) |
