Rear Seat Belt Replacement

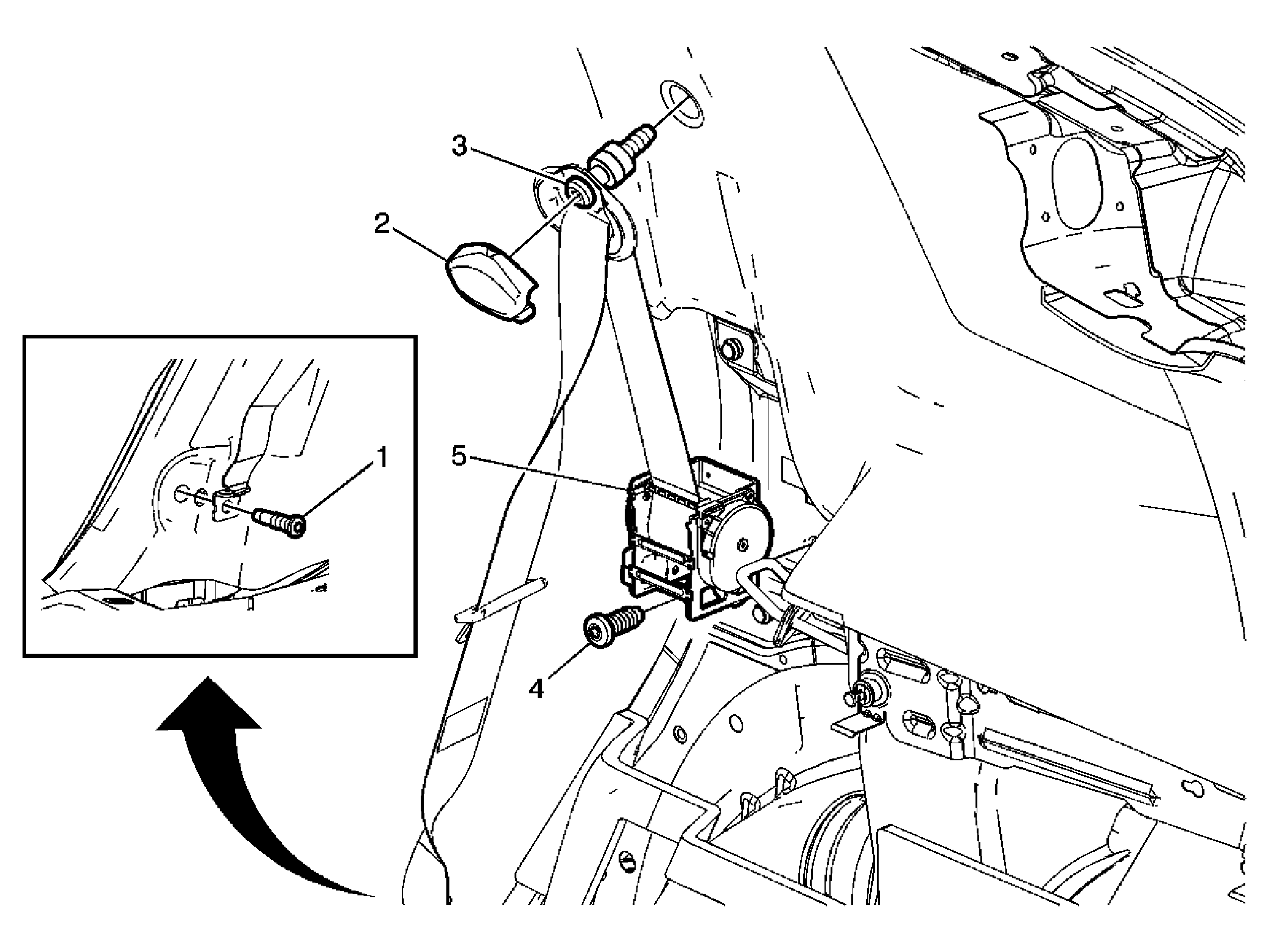

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the rear lower quarter panel trim. Refer to Rear Quarter Lower Trim Panel Replacement
. |
|
| 1 | Shoulder Belt Anchor Plate Bolt Tip: Lean seat back forward to allow easier access to fastener. Tighten: 43 N.m (32 lb ft) |
| 2 | Rear Seat Shoulder Belt Guide Cover |
| 3 | Rear Seat Shoulder Belt Guide Bolt Tighten: 43 N.m (32 lb ft) |
| 4 | Rear Seat Belt Retractor Bolt Tighten: 43 N.m (32 lb ft) |
| 5 | Rear Seat Belt Retractor |
