Rear Floor Trim Plate Replacement

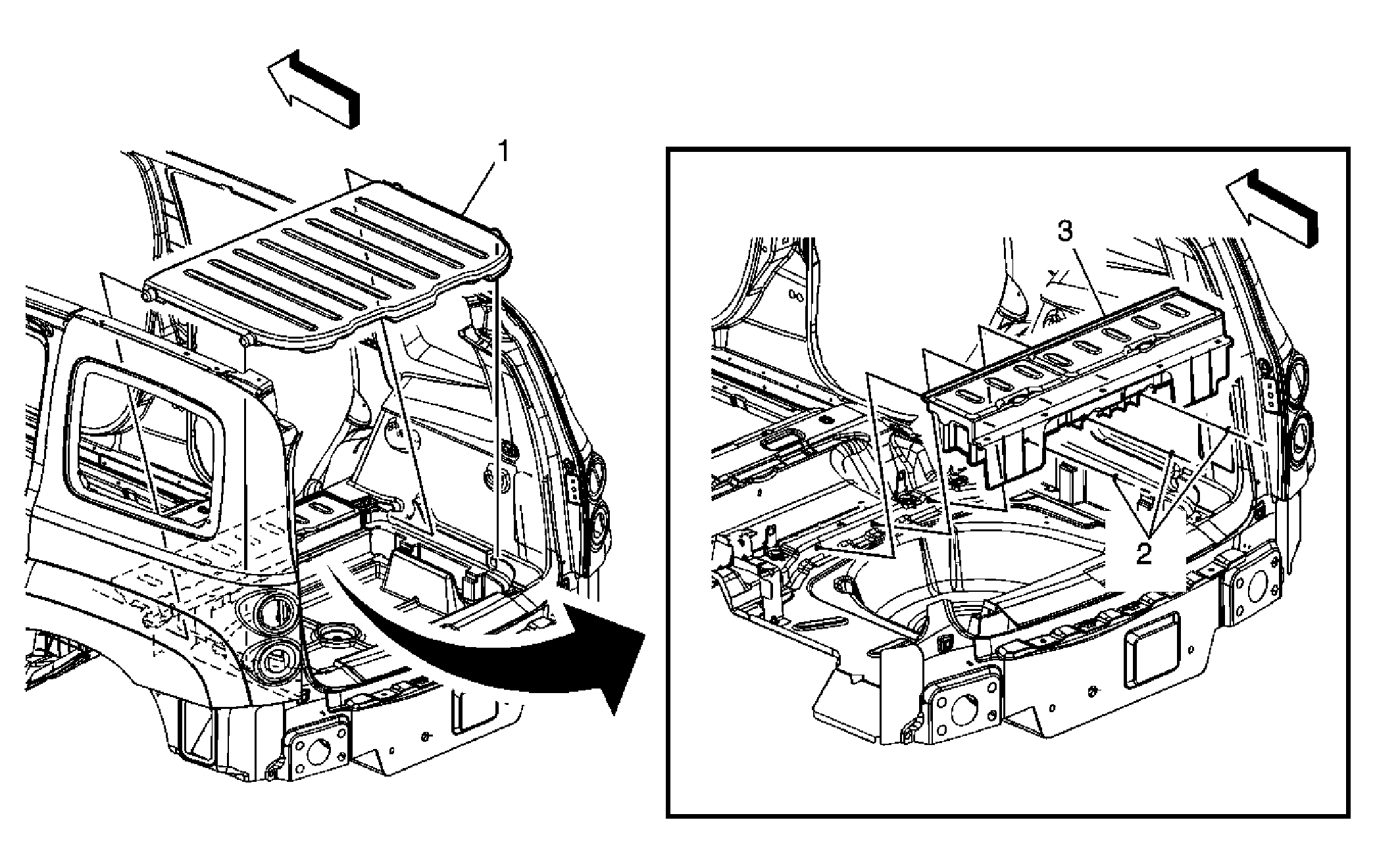

Fig 1: Rear Floor Trim Plate Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Load Floor Rear Trim Panel
2	Floor Trim Panel Nuts (Qty: 3) Tighten: 9 N.m (80 lb in)
3	Rear Compartment Floor Stowage Compartment Tray
