Rear Quarter Upper Trim Panel Replacement (Except AXS)

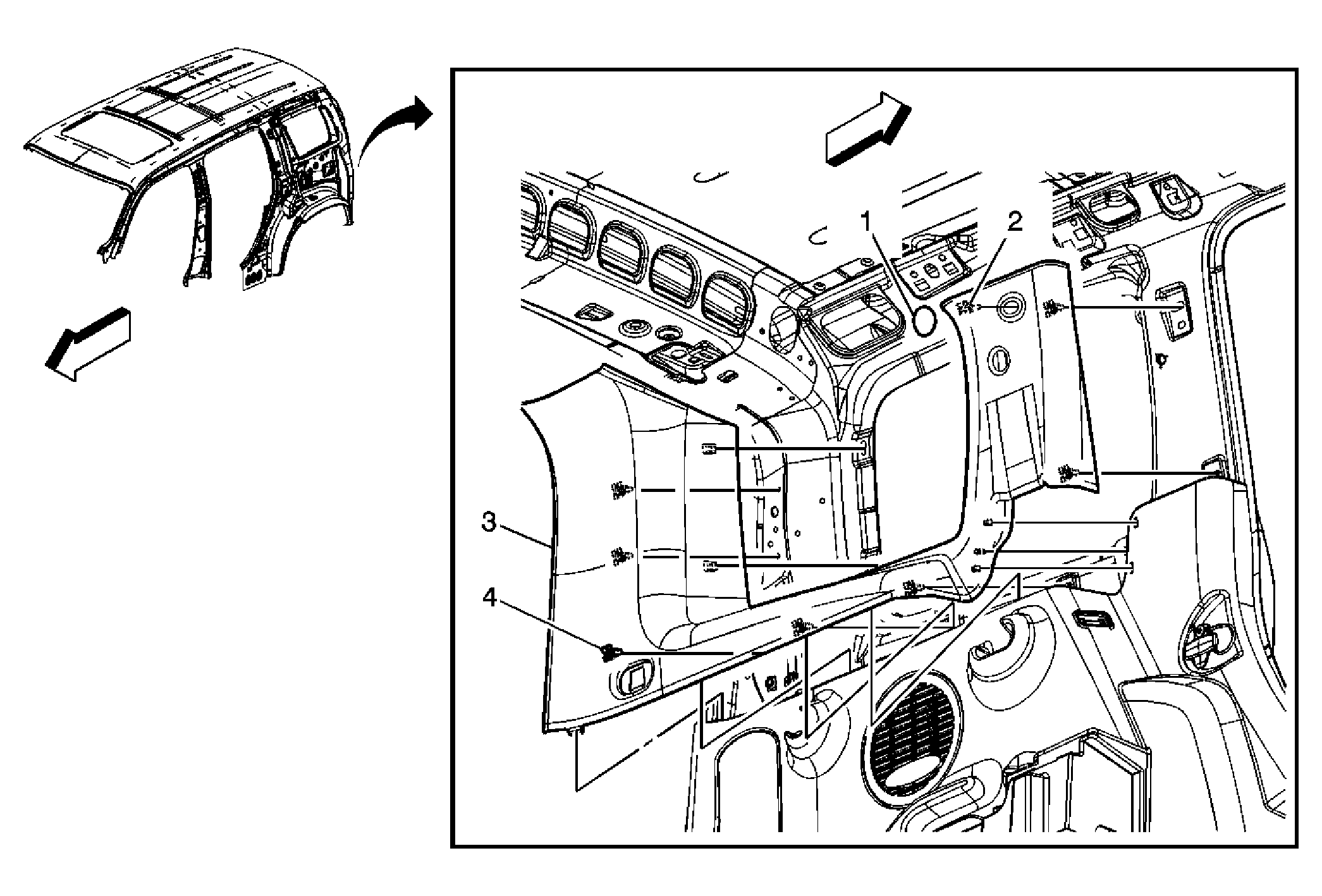

Fig 1: Rear Quarter Upper Trim Panel Replacement (Except AXS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Disable the roof rail SIR system. Refer to SIR Disabling and Enabling .
1	Quarter Upper Trim Panel Cover
2	Quarter Upper Trim Panel Screw NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
3	Quarter Upper Trim Panel Assembly Procedure Remove the cargo tie down loop anchor plate and bolt. Pull the trim panel toward the inside of the vehicle to disengage the retainers. Tighten: 9 N.m (80 lb in)
4	Quarter Upper Trim Clip (Qty: 6)
