Heated Seat Control Module Replacement - Front (Impala)

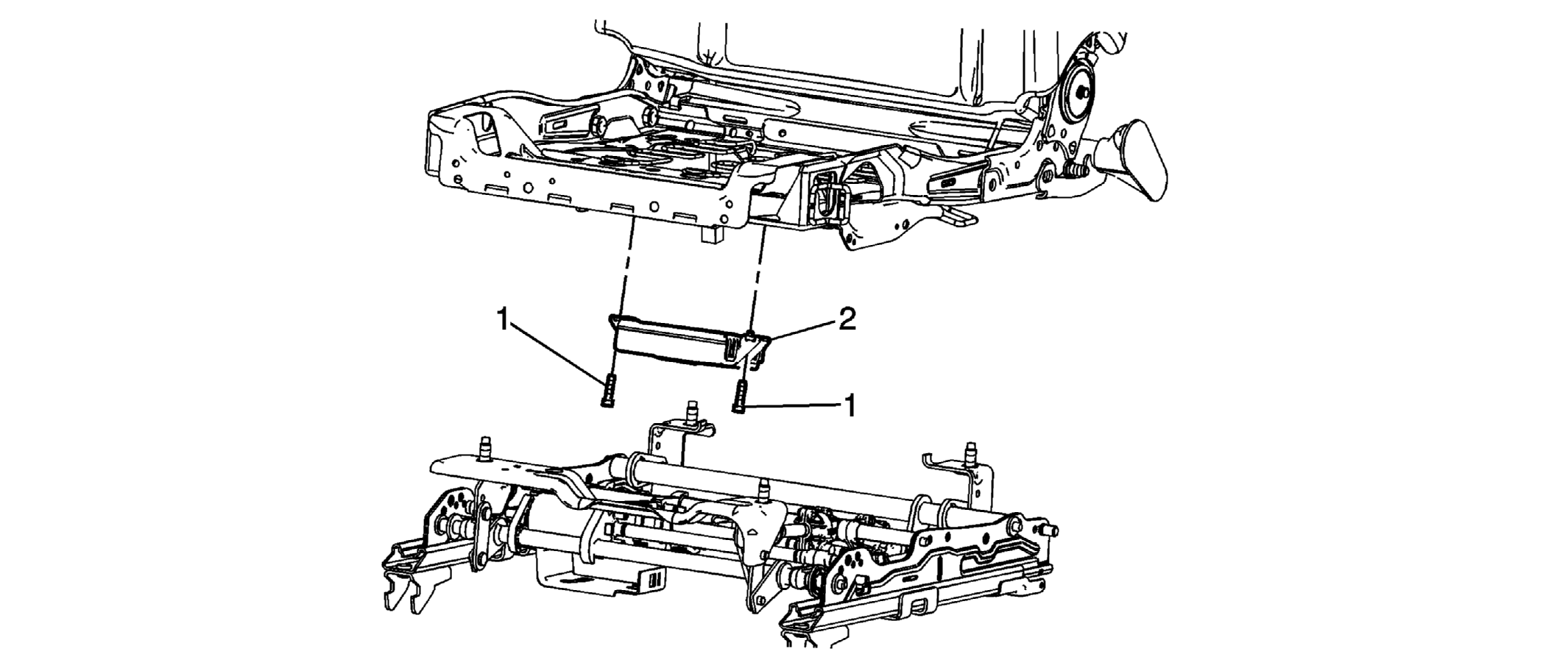

Fig 1: Identifying Front Heated Seat Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket (Impala) or Front Seat Replacement - Bucket (Monte Carlo) . Remove the front seat adjuster. Refer to Front Seat Adjuster Replacement (Impala) or Front Seat Adjuster Replacement (Monte Carlo) .
1	Screw, Front Seat Heater Control Module (Qty: 2) Tighten: 2 N.m (18 lb in)
2	Module, Front Seat Heater Control Refer to Control Module References for programming and setup information. Tip: Disconnect the electrical connector.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Screw, Front Seat Heater Control Module (Qty: 2)

Tighten: 2 N.m (18 lb in)

Module, Front Seat Heater Control
Refer to Control Module References for programming and setup information.
Tip: Disconnect the electrical connector.
