Front Seat Replacement - Bucket (Monte Carlo)

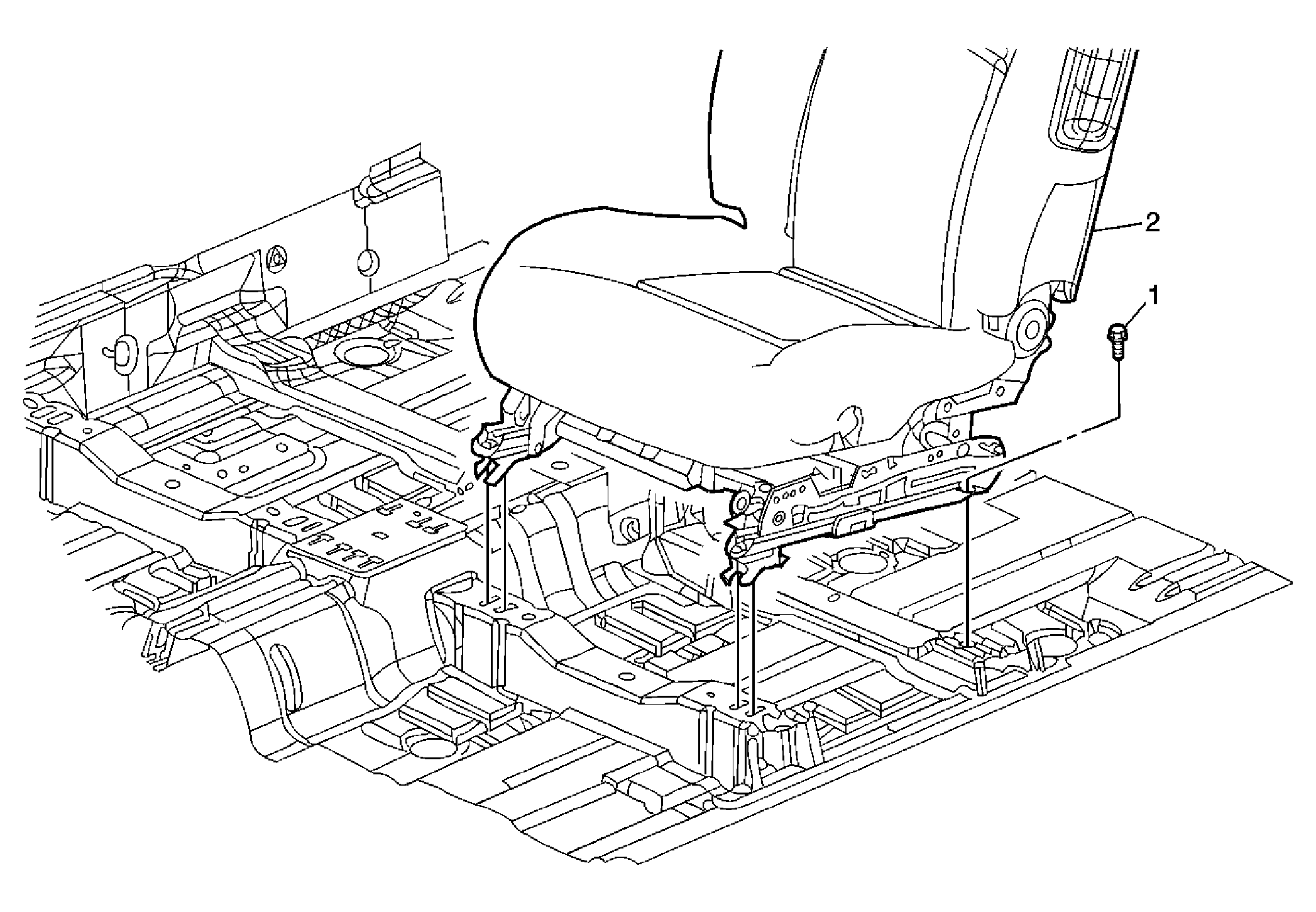

Fig 1: View Of Front Bucket Seat (Monte Carlo)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Disconnect the seat belt from the seat. Refer to Seat Belt Retractor Pretensioner Replacement - Front (Impala) or Seat Belt Retractor Pretensioner Replacement - Front (Monte Carlo) .
1	Bolt, Seat Adjuster (Qty: 2) Tip: Adjust the seat forward or rearward to access the bolts. Tighten: 45 N.m (33 lb ft)
2	Seat Assembly Tip: Disconnect the electrical connectors.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Bolt, Seat Adjuster (Qty: 2)
Tip: Adjust the seat forward or rearward to access the bolts.

Tighten: 45 N.m (33 lb ft)

Seat Assembly
Tip: Disconnect the electrical connectors.
