Front Seat Adjuster Replacement (Impala)

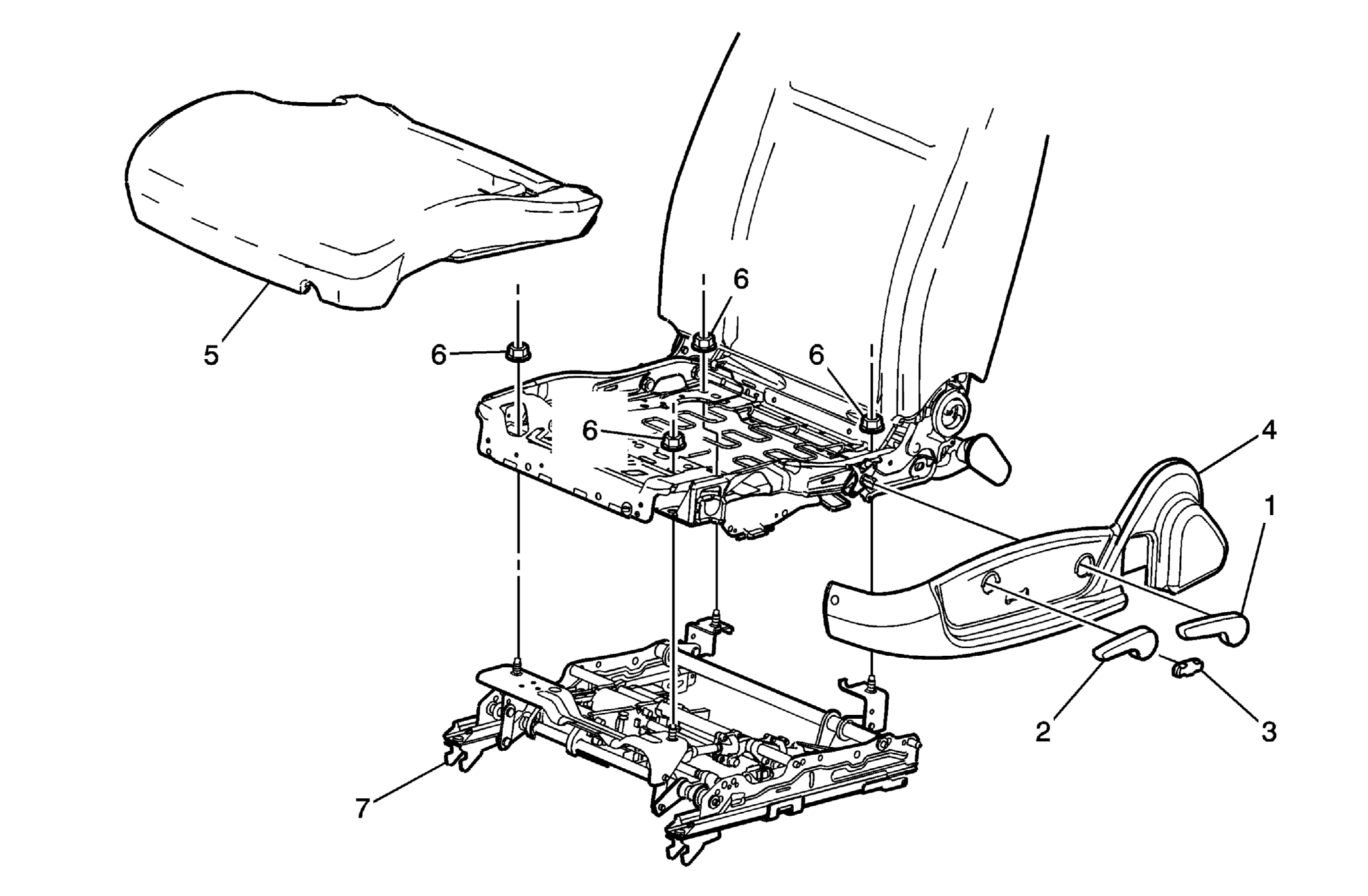

Fig 1: Locating Seat Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front seat. Refer to Front Seat Replacement - Bucket (Impala) or Front Seat Replacement - Bucket (Monte Carlo) .
1	Handle, Recliner Tip: Using a flat-bladed tool, push the retainer clip downward and pull outward to release the handle.
2	Handle, Lumbar Actuator Tip: Pull outward to remove.
3	Knob, Power Seat Switch Tip: Pull outward to remove.
4	Panel, Seat Cushion Outer Trim Refer to Seat Cushion Outer Trim Panel Replacement (Impala) or Seat Cushion Outer Trim Panel Replacement (Monte Carlo) .
5	Cover, Seat Cushion Tip: Release the j-channel from the seat cushion frame. Disconnect the seat cushion heater electrical connector, if equipped. Remove the seat cushion cover and pad as an assembly from the frame.
6	Nut, Front Seat Cushion Frame (Qty: 4) Tighten: 9 N.m (80 lb in)
7	Adjuster Assembly, Front Seat
