Front Seat Adjuster Replacement (Monte Carlo)

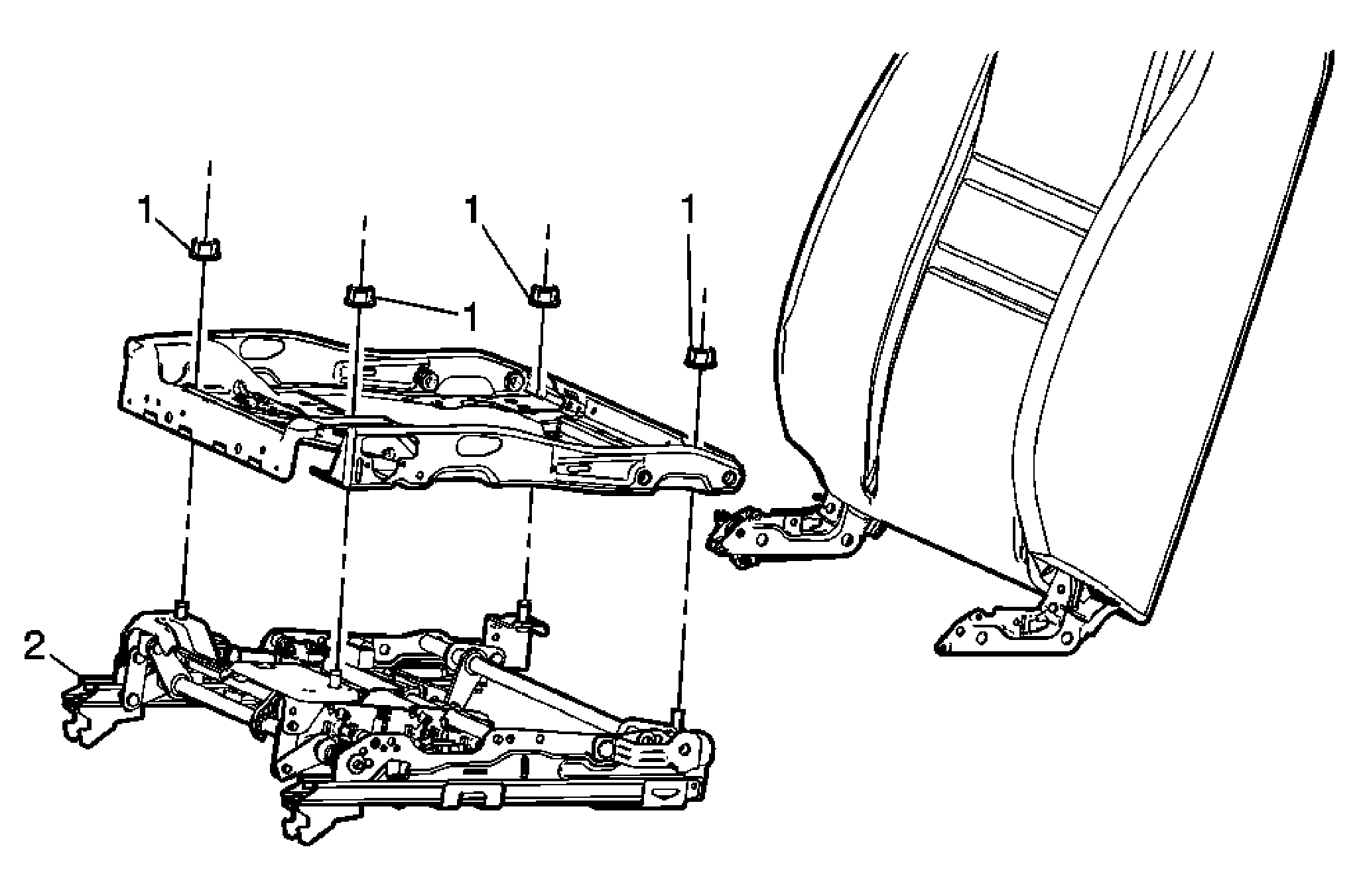

Fig 1: Identifying Front Seat Adjuster Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Disable the SIR system if working on the passenger seat. Refer to SIR Disabling and Enabling . Remove the front seat. Refer to Front Seat Replacement - Bucket (Impala) or Front Seat Replacement - Bucket (Monte Carlo) . Remove the front seat cushion cover and pad. Refer to Seat Cushion Cover and Pad Replacement - Front (Impala) or Seat Cushion Cover and Pad Replacement - Front (Monte Carlo) .
1	Nut, Front Seat Cushion Frame (Qty: 4) Tighten: 9 N.m (80 lb in)
2	Adjuster Assembly, Front Seat

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Nut, Front Seat Cushion Frame (Qty: 4)

Tighten: 9 N.m (80 lb in)

Adjuster Assembly, Front Seat
