Instrument Panel (I/P) Carrier Replacement

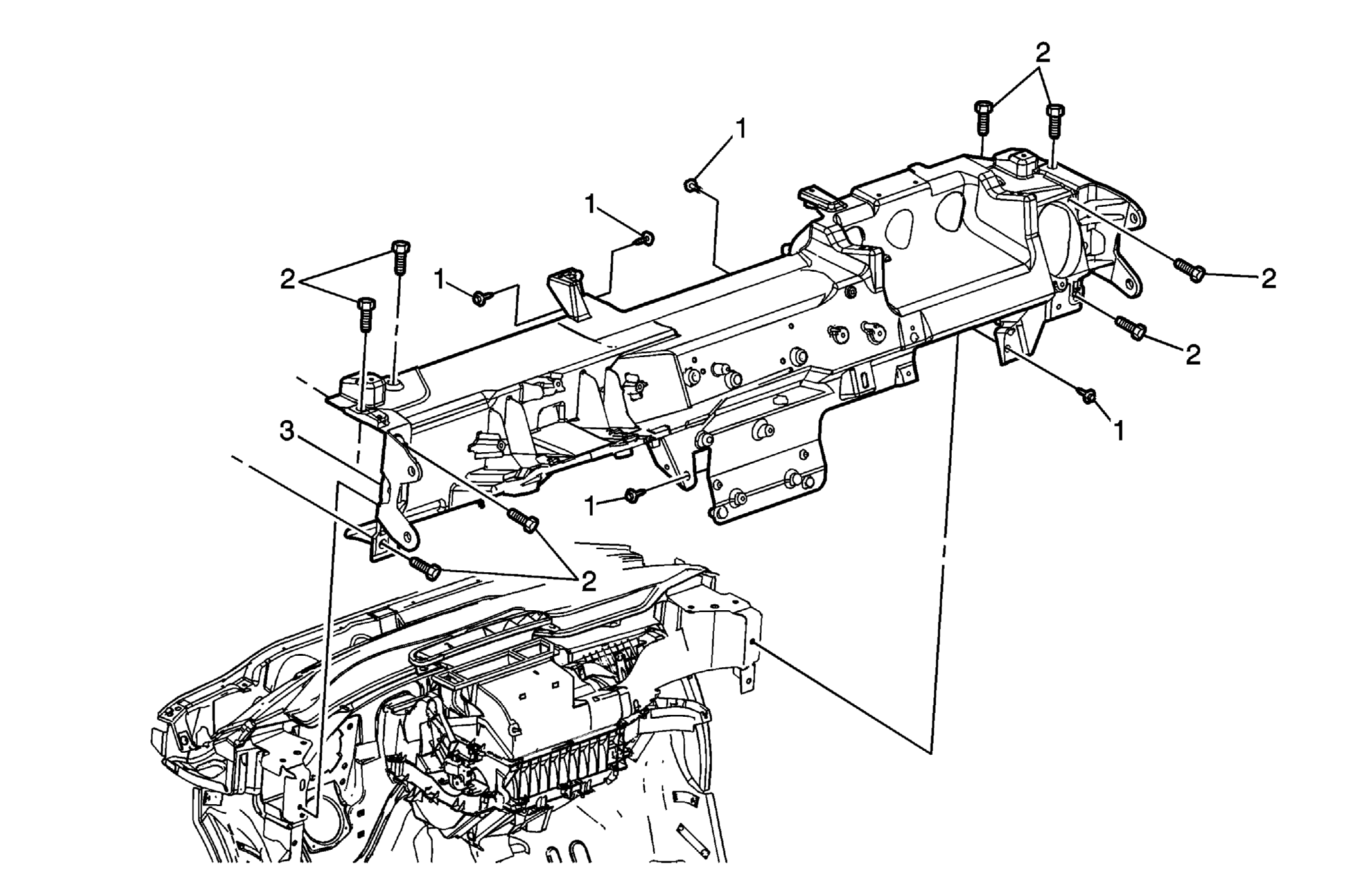

Fig 1: Replacing Instrument Panel (I/P) Carrier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the Instrument Panel Lower Trim Panel. Refer to Instrument Panel (I/P) Trim Panel Replacement - Lower (Impala) or Instrument Panel (I/P) Trim Panel Replacement - Lower (Monte Carlo) . Remove the Drivers Knee Bolster Brackets. Refer to Knee Bolster Bracket Replacement - Left . Remove the Passenger Knee Bolster Bracket. Refer to Knee Bolster Bracket Replacement - Right . Remove the Instrument Panel Center Support Bracket. Refer to Bracket Replacement - Instrument Panel (I/P) Center Support . Remove the Air Distributor Duct Assembly. Refer to Air Distributor Duct Replacement . Remove the Right Air Outlet Duct Assembly. Refer to Air Outlet Duct Replacement - Instrument Panel (I/P) - Upper Right .
1	Bolt, Instrument Panel Carrier to HVAC Module (Qty 5) Tighten: 4 N.m (35 lb in)
2	Bolt, Instrument Panel Carrier to Body (Qty 8) Tighten: 25 N.m (18 lb ft)
3	Carrier Assembly, Instrument Panel Tip: Note routing of the wiring harness to aid in the reinstallation. With the aid of an assistant, remove from the vehicle. Remove the Defroster Air Outlet Duct Assembly. Refer to Air Outlet Duct Replacement - Defroster
