Upper Right Air Outlet Duct Replacement - Instrument Panel (I/P)

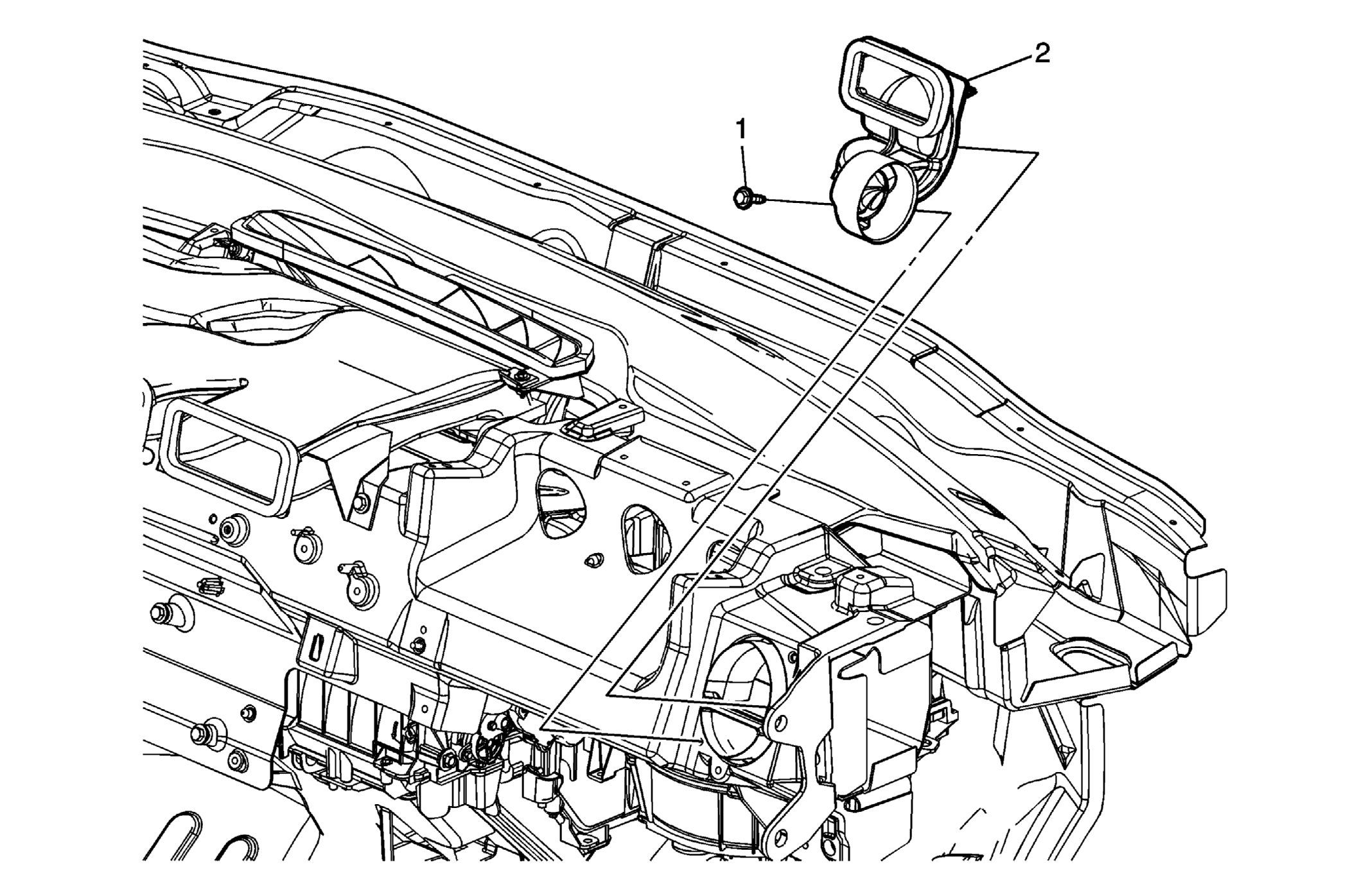

Fig 1: Replacing Upper Right Air Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Air Outlet Duct Replacement - Instrument Panel (I/P) - Upper Right

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the lower instrument panel trim pad. Refer to Instrument Panel (I/P) Trim Panel Replacement - Lower (Impala) or Instrument Panel (I/P) Trim Panel Replacement - Lower (Monte Carlo) .
1	Bolt, Duct Assembly, Air Distributor Right Hand Extension Tighten: 16 N.m (12 lb ft)
2	Duct Assembly, Air Distributor Right Hand Extension
