Defroster Air Outlet Duct Replacement

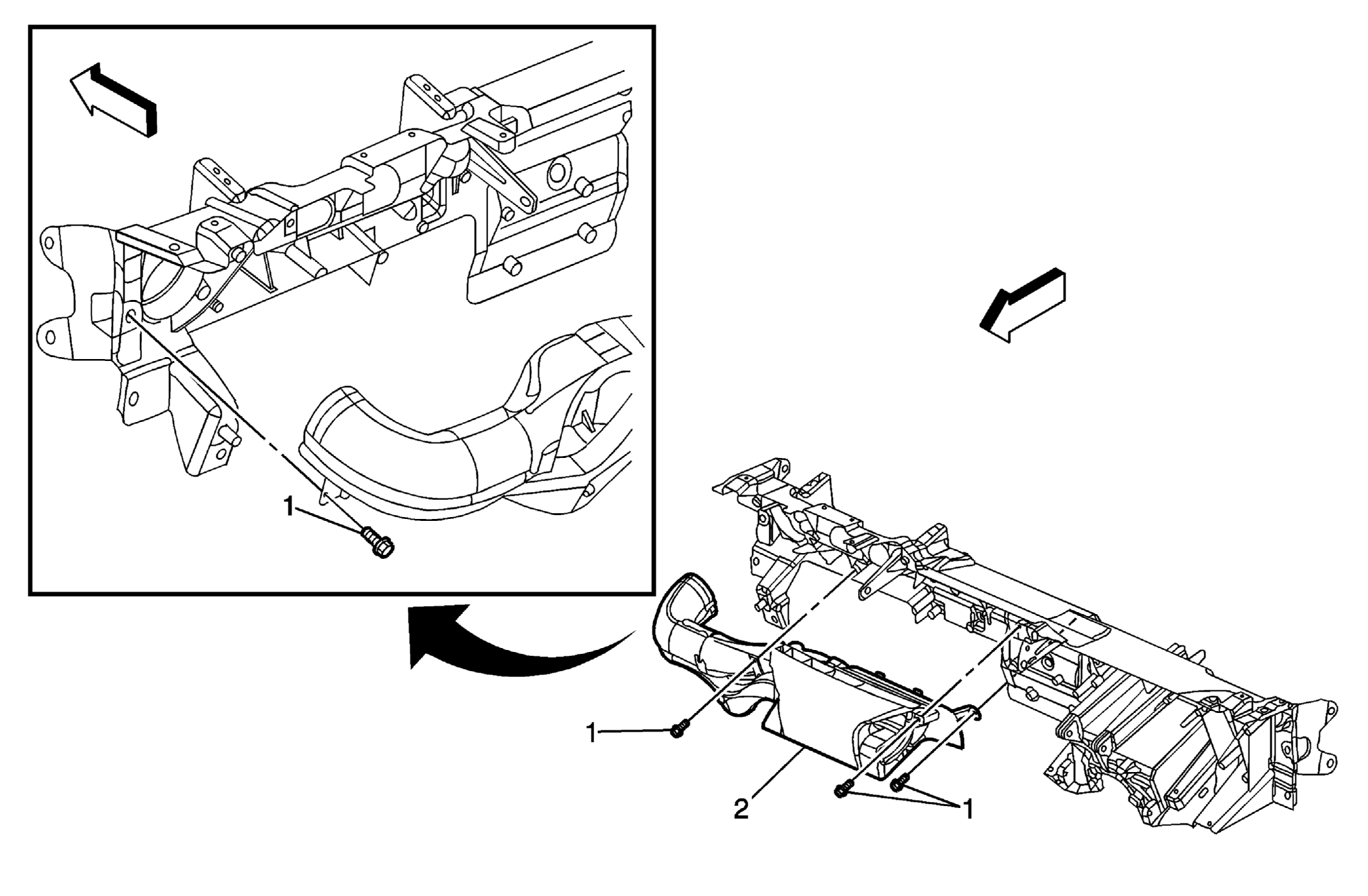

Fig 1: Replacing Defroster Air Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Air Outlet Duct Replacement - Defroster

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the instrument panel carrier. Refer to Instrument Panel (I/P) Carrier Replacement .
1	Air Distributor Assembly - Windshield Defroster Nozzle Bolt (Qty: 4) Tighten: 10 N.m (89 lb in).
2	Distributor Assembly - Windshield Defroster Nozzle and Air
