Air Distributor Duct Replacement

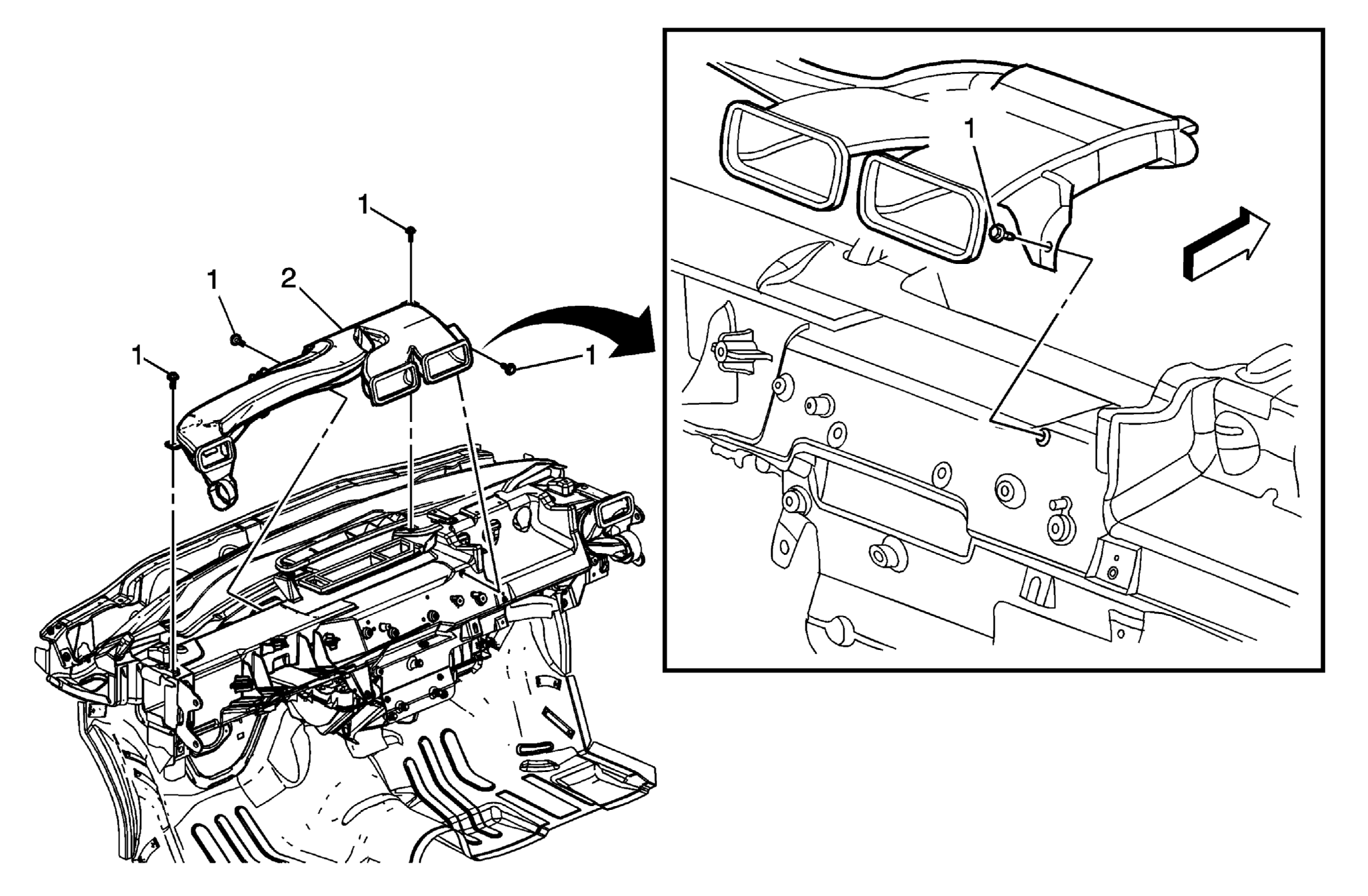

Fig 1: Replacing Air Distributor Duct
GM1608356Courtesy of GENERAL MOTORS CORP.
Air Distributor Duct Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the lower instrument panel trim pad. Refer to Instrument Panel (I/P) Trim Panel Replacement - Lower (Impala) or Instrument Panel (I/P) Trim Panel Replacement - Lower (Monte Carlo) .
1 Bolt, Air Distributor Assembly

Tighten:  10 N.m (89 lb in)
2 Distributor Assembly, Air
