Installation Procedure

WARNING: This page is about a different variant/trim than selected.

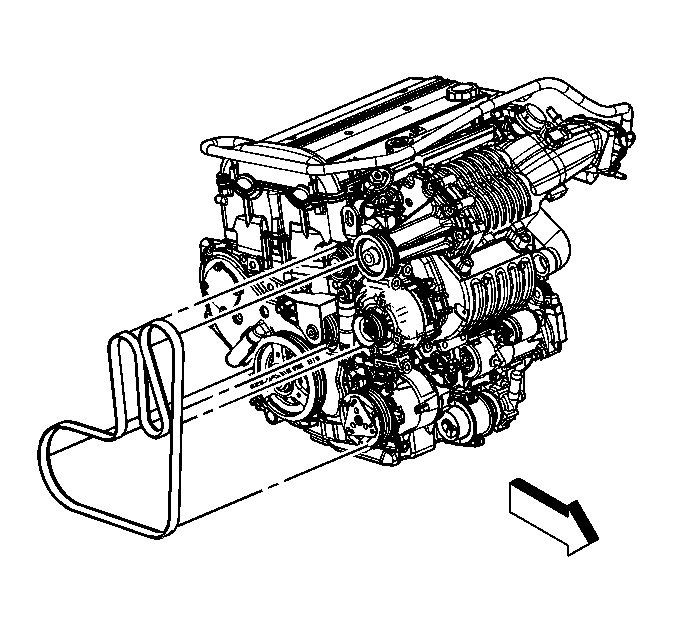

    Fig 1: Drive Belt Routing 2.0L
    GM1600754Courtesy of GENERAL MOTORS CORP.
  1. Install the drive belt to the vehicle.
  2. Install the drive belt around all the pulleys, except for the tensioner.
  3. Install the engine splash shield. Refer to Splash Shield Replacement - Engine .
  4. Install the right front fender liner. Refer to Front Fender Liner Replacement .
  5. Using an open end wrench, rotate the drive belt tensioner counter clockwise to release the spring tension.
  6. Install the drive belt around the tensioner.
