Head Impact Pad Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Console (4 door) (See CONSOLE REMOVAL/INSTALLATION .)
    2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    5. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    6. Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    7. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    8. Rear seat (See REAR SEAT REMOVAL/INSTALLATION .)
    9. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    10. Trunk side upper trim (5 door) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION .)
    11. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    12. Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
    13. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    14. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    15. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
  2. Remove the fastener. (Rear)
    Fig 1: Removing Front Head Impact Pad
    G02566845Courtesy of MAZDA MOTORS CORP.

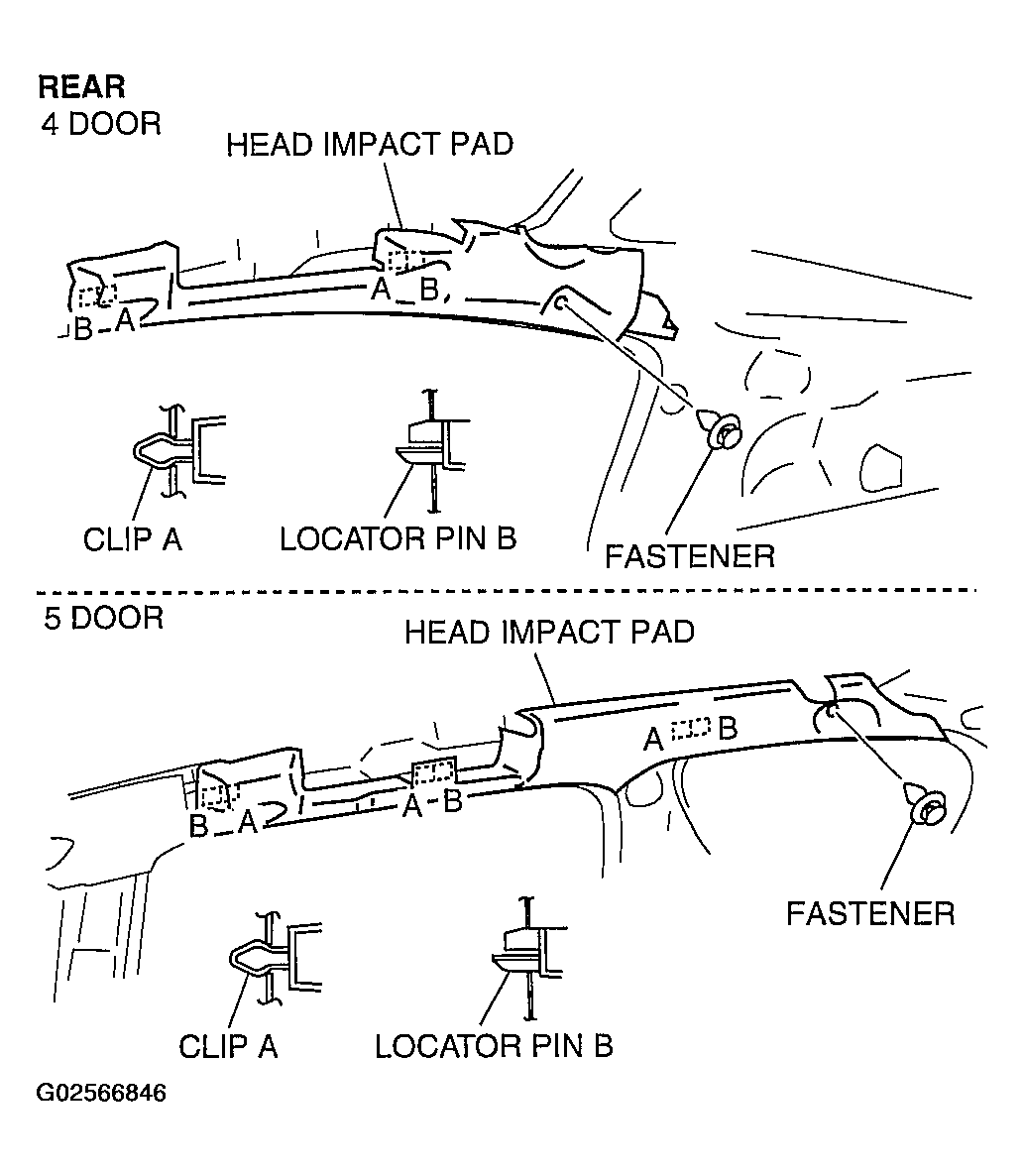

    Fig 2: Removing Rear Head Impact Pad
    G02566846Courtesy of MAZDA MOTORS CORP.
  3. Pull the head impact pad outward and detach the clips A and the locator pins B.
  4. Remove the head impact pad.
  5. Install in the reverse order of removal.
