Tire House Trim Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION .)
  2. Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
  3. Remove the fasteners.

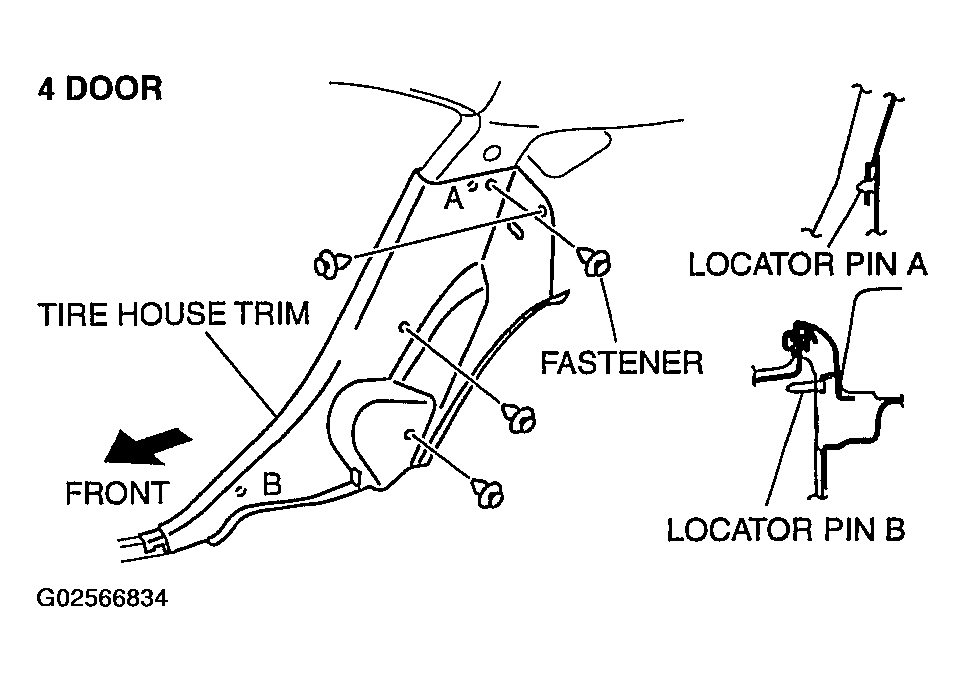

    Fig 1: Removing Tire House Trim - 4 Door
    G02566834Courtesy of MAZDA MOTORS CORP.
  4. Pull the tire house trim outward and detach locator pins A and B. (4 door)
  5. Pull the tire house trim outward and detach locator pins A, B and tab C. (5 door)
  6. Remove the tire house trim.
  7. Install in the reverse order of removal.
    Fig 2: Removing Tire House Trim - 5 Door
    G02566835Courtesy of MAZDA MOTORS CORP.
