Rear Seat Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Lift points A in the direction of the arrows and remove the rear seat cushion.
Fold the rear seat back.

Fig 1: Removing Rear Seat Cushion
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.

Fig 2: Rear Seat Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

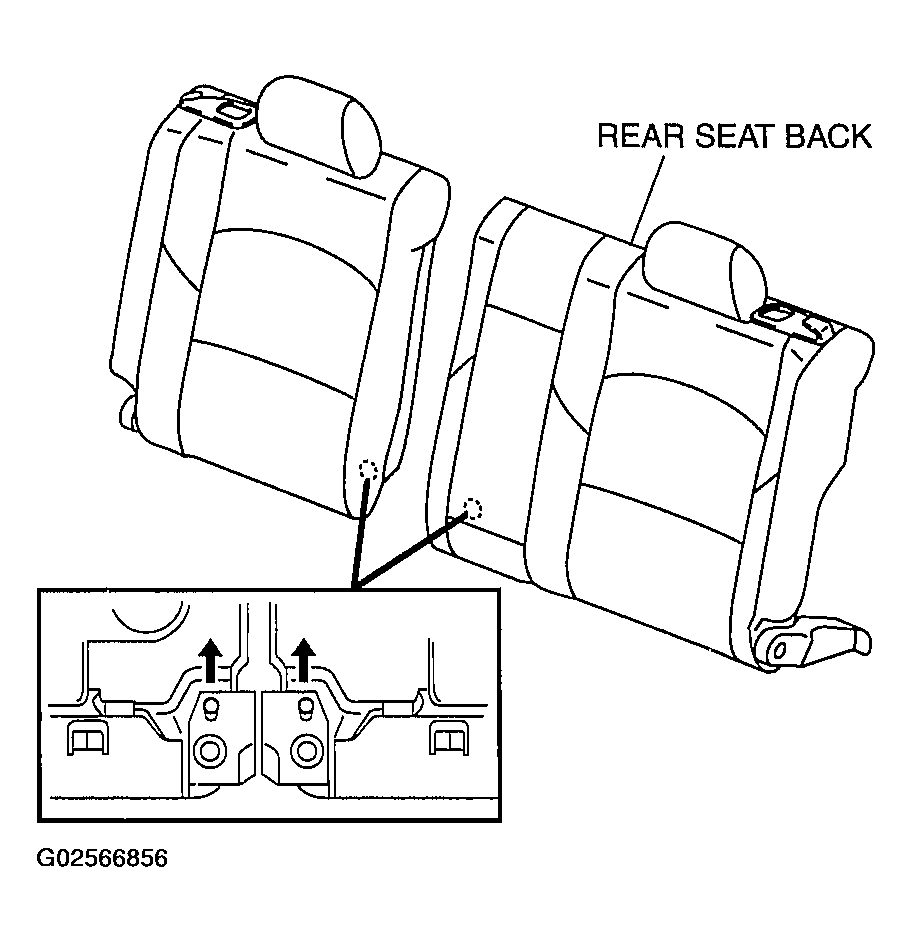

Raise the rear seat back in the direction of the arrows and detach the connecting part between the rear seat back and bracket.
Remove the rear seat back.
Install in the reverse order of removal.

Fig 3: Removing Rear Seat Back
Courtesy of MAZDA MOTORS CORP.
