Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the coolant. Refer to Cooling System Draining and Filling (Static Fill With HP5)  or Cooling System Draining and Filling (GE 47716 Fill With HP5)
  2. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (LCS)
  3. Remove the radiator opening upper cover. Refer to Radiator Opening Upper Cover Replacement
  4. Remove the front end guard. Refer to Front End Guard Replacement
  5. Remove the radiator vent inlet hose from the radiator inlet hose. Refer to Radiator Vent Inlet Hose Replacement (HP5)

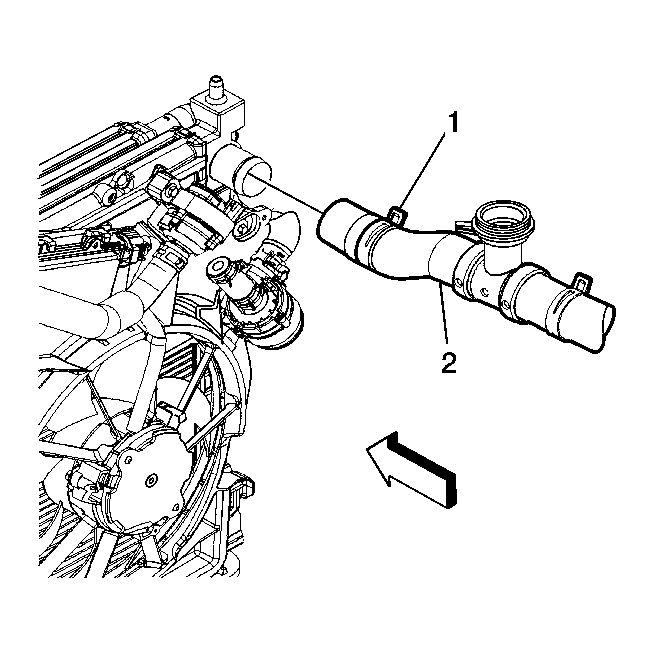

    6. Fig 1: Radiator Inlet Hose & Clamp
    GM2154431Courtesy of GENERAL MOTORS CORP.
  6. Using J 38185:  Hose Clamp Pliers disengage the tension on the hose clamp (1) and remove the radiator inlet hose (2) from the radiator.

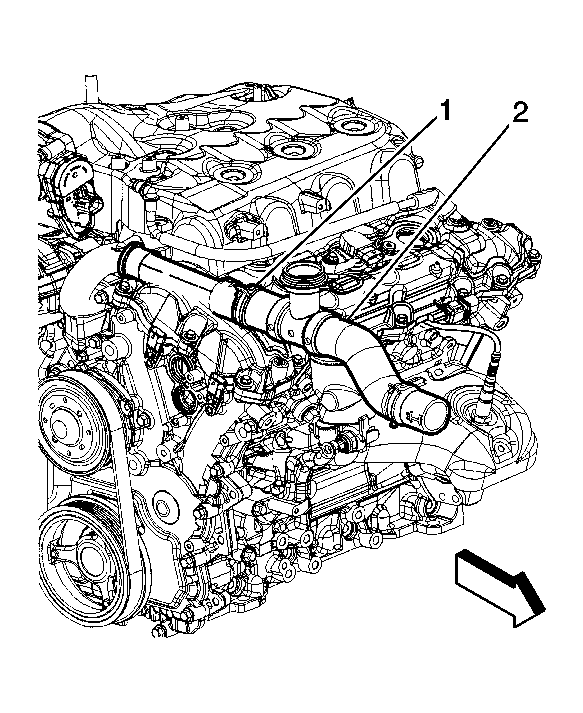

    7. Fig 2: Radiator Inlet Hose
    GM2154430Courtesy of GENERAL MOTORS CORP.
  7. Using J 38185:  Hose Clamp Pliers disengage the tension on the hose clamp (1) and remove the radiator inlet hose (2) from the engine.
  8. Remove the radiator inlet hose from the vehicle.
