Fuel Injector Sight Shield Replacement (LCS)
Fuel Injector Sight Shield Replacement (LCS)
WARNING:
This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

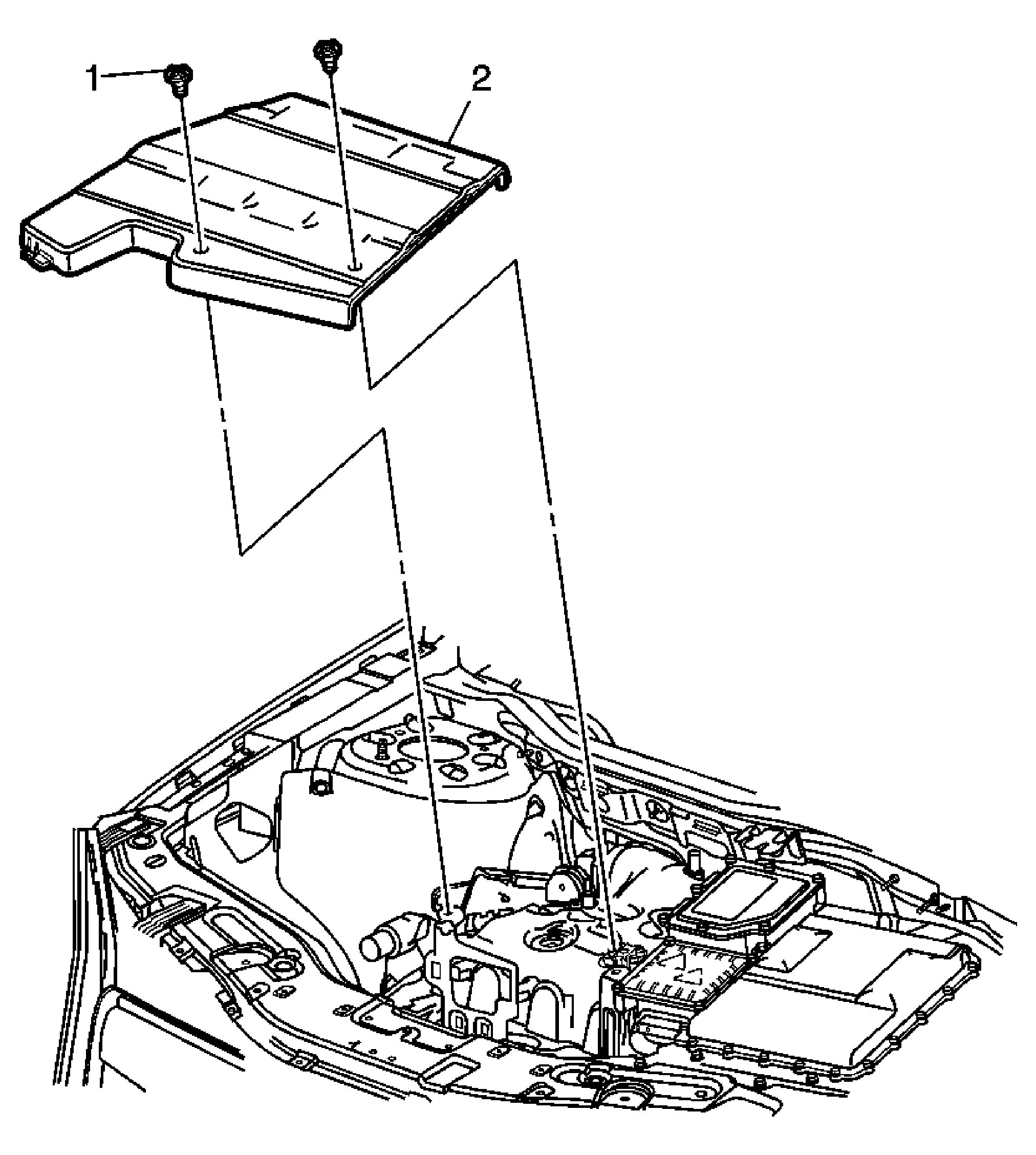

Fig 1: Fuel Injector Sight Shield Replacement (LCS)
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Fuel Injector Sight Shield Retainer (Qty: 2)
2
Fuel Injector Sight Shield Cover
Procedure:
Transfer parts as needed.
