Radiator Vent Inlet Hose Replacement (HP5)

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

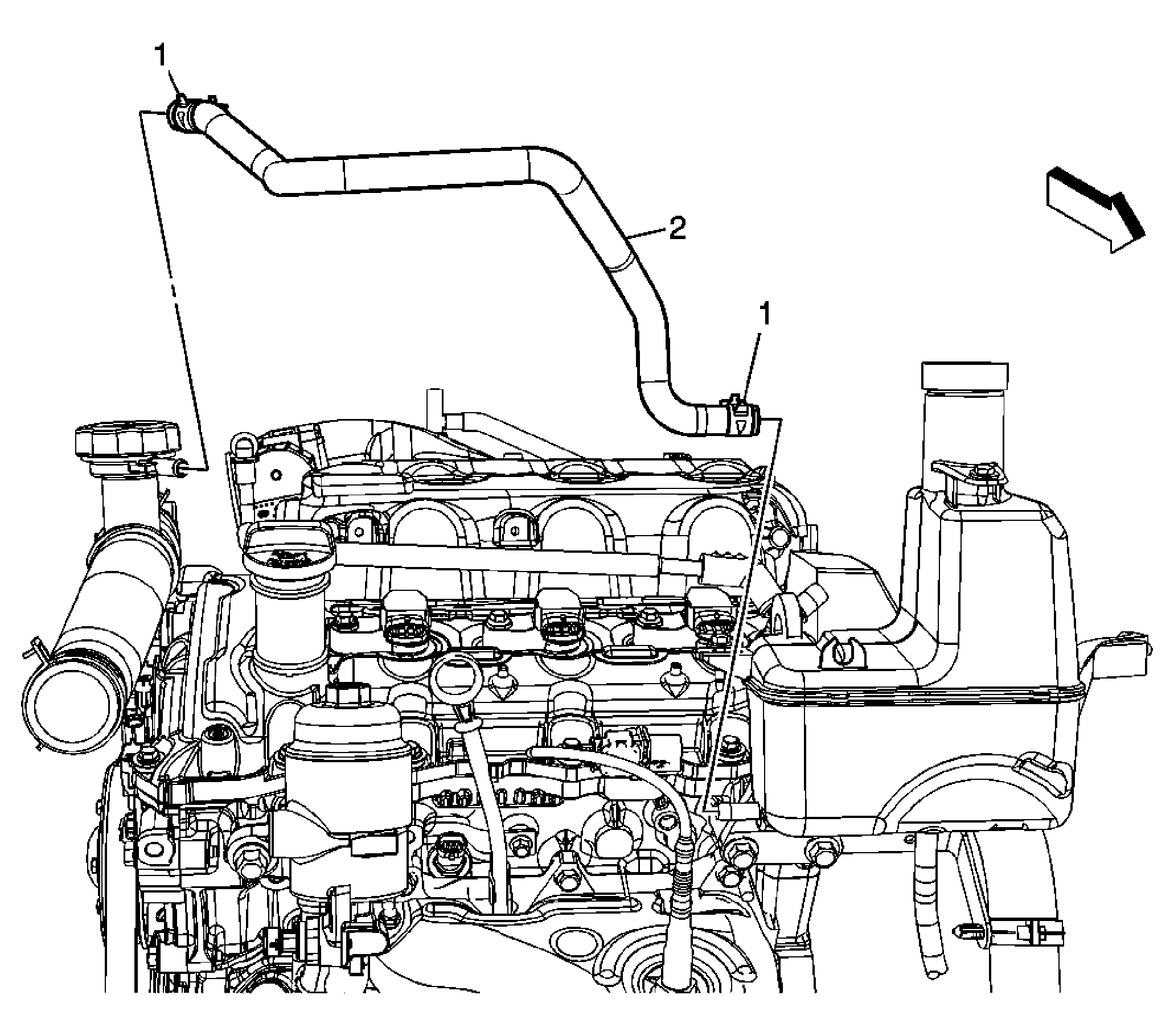

Fig 1: Radiator Vent Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove fuel injector sight sheild. Refer to Fuel Injector Sight Shield Replacement (LY7) or Fuel Injector Sight Shield Replacement (LCS) Remove underhood junction block and bracket. Refer to Underhood Electrical Center or Junction Block Replacement (HP7) or Underhood Electrical Center or Junction Block Replacement (HP5) Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5)
1	Radiator Vent Inlet Hose Clamp (Qty 2)
2	Radiator Vent Inlet Hose

Callout

Component Name

Preliminary Procedure

Remove fuel injector sight sheild. Refer to Fuel Injector Sight Shield Replacement (LY7) or Fuel Injector Sight Shield Replacement (LCS)
Remove underhood junction block and bracket. Refer to Underhood Electrical Center or Junction Block Replacement (HP7) or Underhood Electrical Center or Junction Block Replacement (HP5)
Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5)

Radiator Vent Inlet Hose Clamp (Qty 2)

Radiator Vent Inlet Hose
