Removal Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (HP5) .
  2. Remove the quarter lower rear trim panel. Refer to Quarter Lower Rear Trim Panel Replacement .
  3. Remove the center pillar lower garnish molding. Refer to Center Pillar Lower Garnish Molding Replacement .
  4. Remove the front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement .
  5. Remove the drive motor generator power inverter module cover. Refer to Drive Motor Generator Power Inverter Module Cover Replacement .
  6. Remove the engine cover. Refer to Fuel Injector Sight Shield Replacement (LY7) or Fuel Injector Sight Shield Replacement (LCS) .
    7. Fig 1: Current Sensor Harness Connector
    GM2107973Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the current sensor harness connector (1).
    8. Fig 2: Positive Cable Terminal & Lever
    GM2107958Courtesy of GENERAL MOTORS CORP.
  8. Rotate the positive cable terminal lever (1) to the release position.
  9. Remove the positive battery cable terminal (2) from the battery.
  10. Note the routing of the positive battery cable through the chassis.

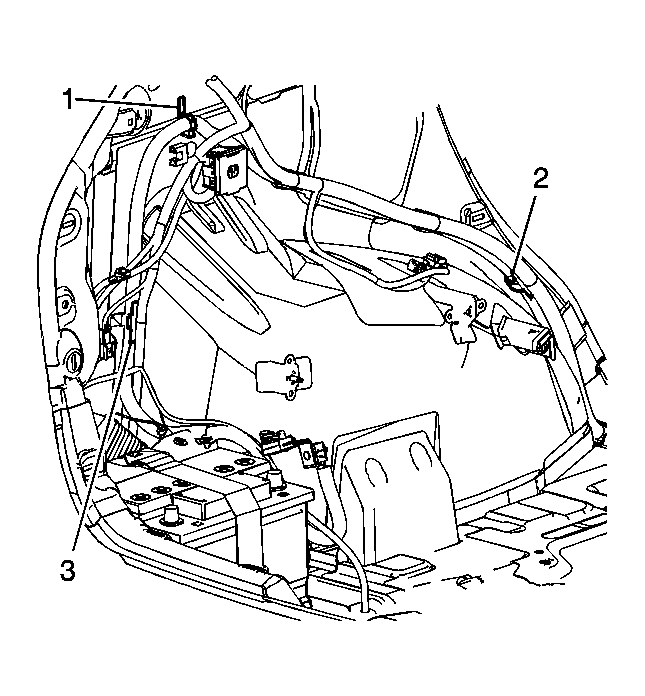

    11. Fig 3: Positive Battery Cable & Retainers
    GM2107978Courtesy of GENERAL MOTORS CORP.
  11. Disengage the positive battery cable from the retainers (1, 2, and 3).
    12. Fig 4: Positive Battery Cable & Retainers
    GM2107981Courtesy of GENERAL MOTORS CORP.
  12. Disengage the positive battery cable from the retainers (1, 2, 3, and 4).

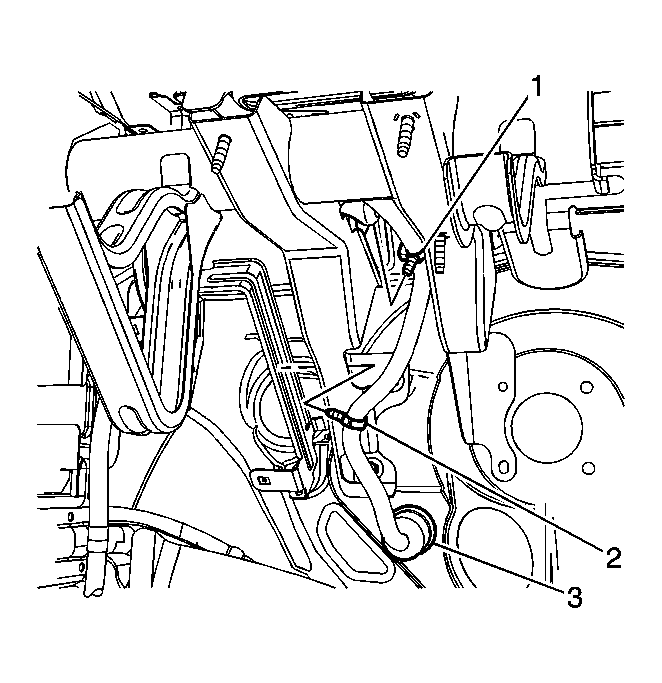

    13. Fig 5: Underdash Retainers
    GM2108736Courtesy of GENERAL MOTORS CORP.
  13. From under the dash, disengage the retainers (1 and 2).
  14. Disengage the positive cable grommet (3) from the dash panel reinforcement.
  15. Remove the under hood fuse box and junction block covers.

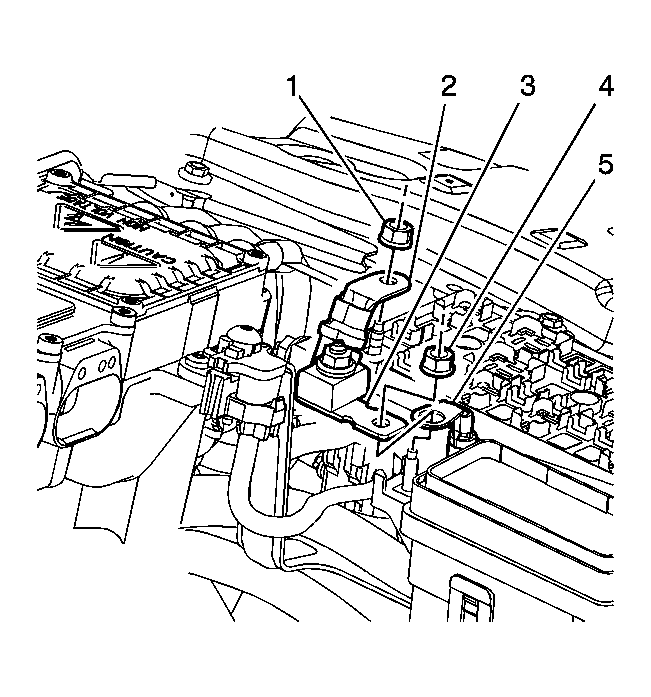

    16. Fig 6: Cables, Terminals & Fasteners
    GM2107984Courtesy of GENERAL MOTORS CORP.
  16. Remove the terminal fasteners (1, and 4).
  17. Remove the fused cable (3) from the terminal.
  18. Remove the cables (2 and 5) from the terminals.

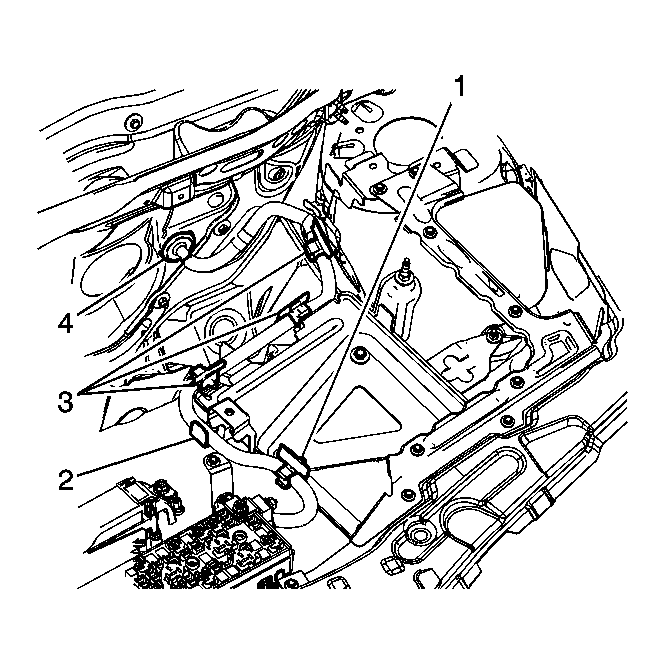

    19. Fig 7: Locating Push Retainers
    GM2108734Courtesy of GENERAL MOTORS CORP.
  19. Disengage the push retainers (1 and 3) from the hybrid control module tray.
  20. Remove the positive battery cable from the retainers (2 and 4).
  21. Route the cable through the dash panel reinforcement to inside the vehicle.
  22. Remove the Positive battery cable from inside the vehicle.
